MIC4608YM - Microchip

Description: Gate Drivers MOSFET Driver 600V, Half Bridge

Download MIC4608YM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

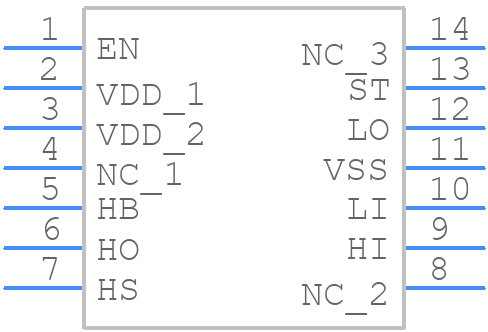

MIC4608YM - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4608YM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOICN-14LD-PL-1
click to zoom
3D Models
MIC4608YM - Microchip - 3D model - Small Outline Packages - SOICN-14LD-PL-1
click to zoom

MIC4608YM Details

  • Manufacturer Part Number:

    MIC4608YM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-NOM

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.636 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.63 mm

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.6 µs

  • Turn-on Time:

    0.6 µs

  • Width:

    3.899 mm

MIC4608YM Frequently Asked Questions (FAQs)

  • The MIC4608YM can operate up to 1.5 MHz, but it's recommended to operate at 500 kHz or lower for optimal performance and efficiency.
  • To ensure stable operation, make sure to follow the recommended layout guidelines, use a low-ESR output capacitor, and decouple the input voltage with a ceramic capacitor. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The MIC4608YM is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. Consult the datasheet for recommended output capacitor values and ESL calculations.
  • The MIC4608YM has a maximum input voltage rating of 28V, but it can be used in designs with higher input voltages by using an external voltage regulator or a resistive divider to reduce the input voltage to within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC4608YM Overview

Use the download button to access the MIC4608YM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC46, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
