MIC4609YWM-TR - Microchip

Description: Gate Drivers 600V 3 Phase MOSFET/IGBT Driver

Download MIC4609YWM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

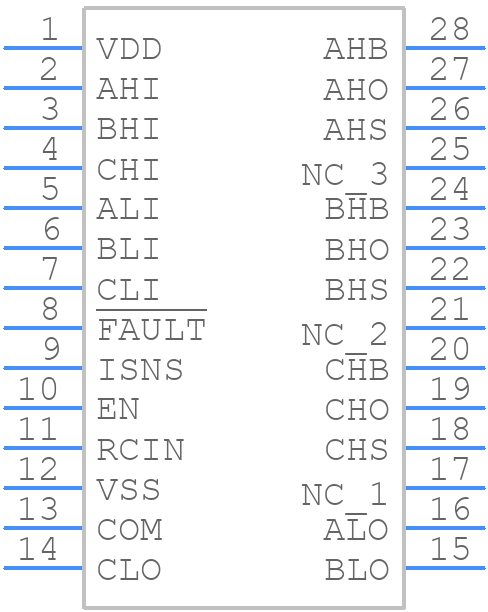

MIC4609YWM-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC4609YWM-TR - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MIC4609YWM-TR
click to zoom
3D Models
MIC4609YWM-TR - Microchip - 3D model - Small Outline Packages - MIC4609YWM-TR
click to zoom

MIC4609YWM-TR Details

  • Manufacturer Part Number:

    MIC4609YWM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-29

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MIC4609YWM-TR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MIC4609YWM-TR is 1.5 MHz.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The maximum input voltage that the MIC4609YWM-TR can handle is 28V.
  • The output voltage of the MIC4609YWM-TR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage.
  • The thermal shutdown temperature of the MIC4609YWM-TR is 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC4609YWM-TR Overview

Use the download button to access the MIC4609YWM-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC46, or try a keyword search, such as MOSFET Drivers
