MIC826TYMT-T5 - Microchip

Description: Supervisory Circuits Voltage Supervisor w/ Watchdog Timer IC

Download MIC826TYMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

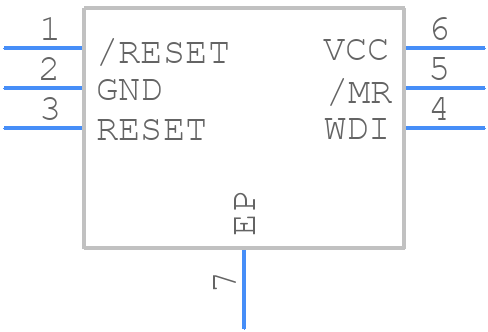

MIC826TYMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC826TYMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 pin dfn
click to zoom
3D Models
MIC826TYMT-T5 - Microchip - 3D model - Small Outline No-lead - 6 pin dfn
click to zoom

MIC826TYMT-T5 Details

  • Manufacturer Part Number:

    MIC826TYMT-T5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075V

  • Width:

    1.6 mm

MIC826TYMT-T5 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended for optimal thermal performance. This helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure reliable startup and shutdown, it is recommended to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the recommended operating range.
  • Operating the MIC826TYMT-T5 at high ambient temperatures can reduce its reliability and lifespan. It is recommended to derate the output current and ensure good airflow to prevent overheating. The device should be operated within the recommended operating temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the MIC826TYMT-T5, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions. Use an oscilloscope to check for any unusual voltage or current waveforms, and consult the datasheet and application notes for guidance.
  • To minimize EMI and EMC issues, ensure that the MIC826TYMT-T5 is placed in a shielded area, and that the PCB layout is designed to minimize radiation. Use a common-mode choke and a ferrite bead to filter the input and output lines, and ensure that the device is operated within the recommended frequency range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIC826TYMT-T5 Overview

Use the download button to access the MIC826TYMT-T5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC82, or try a keyword search, such as Power Management Circuits
