For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the PCB layout allows for good airflow around the device.
To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure that the device is properly soldered. Additionally, consider using a thermally conductive heat sink or a heat spreader to dissipate heat efficiently.
To mitigate EMI and RFI, ensure that the PCB layout is designed to minimize radiation and susceptibility. Use a multi-layer PCB with a solid ground plane, and consider using shielding or a metal can to enclose the device. Additionally, use EMI filters or common-mode chokes to reduce emissions and susceptibility.
When selecting input and output capacitors, consider the device's operating frequency, output current, and voltage rating. Choose capacitors with low ESR, high ripple current rating, and a suitable voltage rating. X5R or X7R ceramic capacitors are recommended for their high reliability and low ESR.
For soldering and rework, use a soldering iron with a temperature range of 250°C to 300°C. Apply a small amount of solder paste or flux to the pads, and use a gentle touch to avoid damaging the device. For rework, use a hot air rework station or a soldering iron with a fine tip to avoid overheating the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIC826YYMT-TR Overview

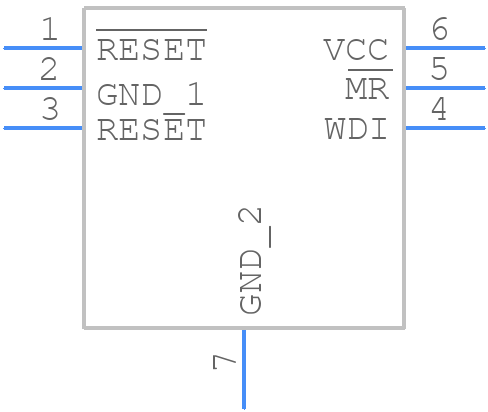

Use the download button to access the MIC826YYMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIC82,
or try a keyword search, such as Power Management Circuits
