MIP25R12E1ATN-BP - MCC

Description: IGBT Modules 1200V 25A 23-Pin

Download MIP25R12E1ATN-BP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MIP25R12E1ATN-BP model

Email notifications will be applied after download.

Send part feedback

Symbol

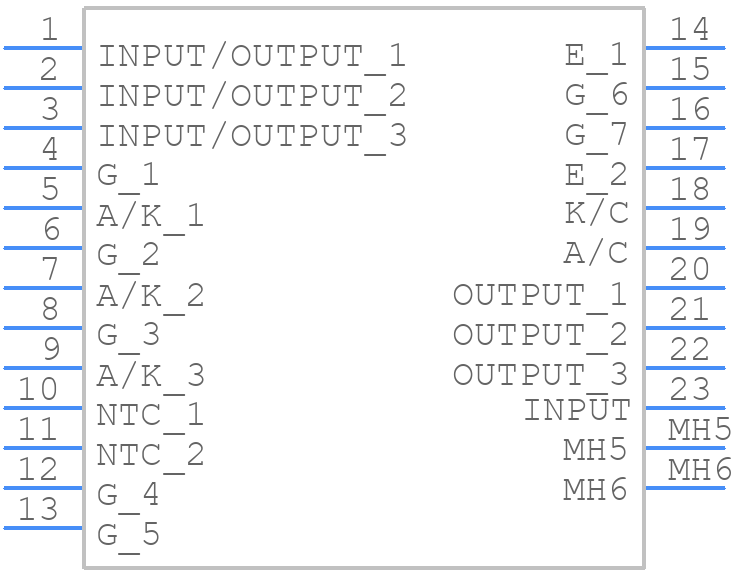

MIP25R12E1ATN-BP - MCC - PCB symbol

PCB Footprints

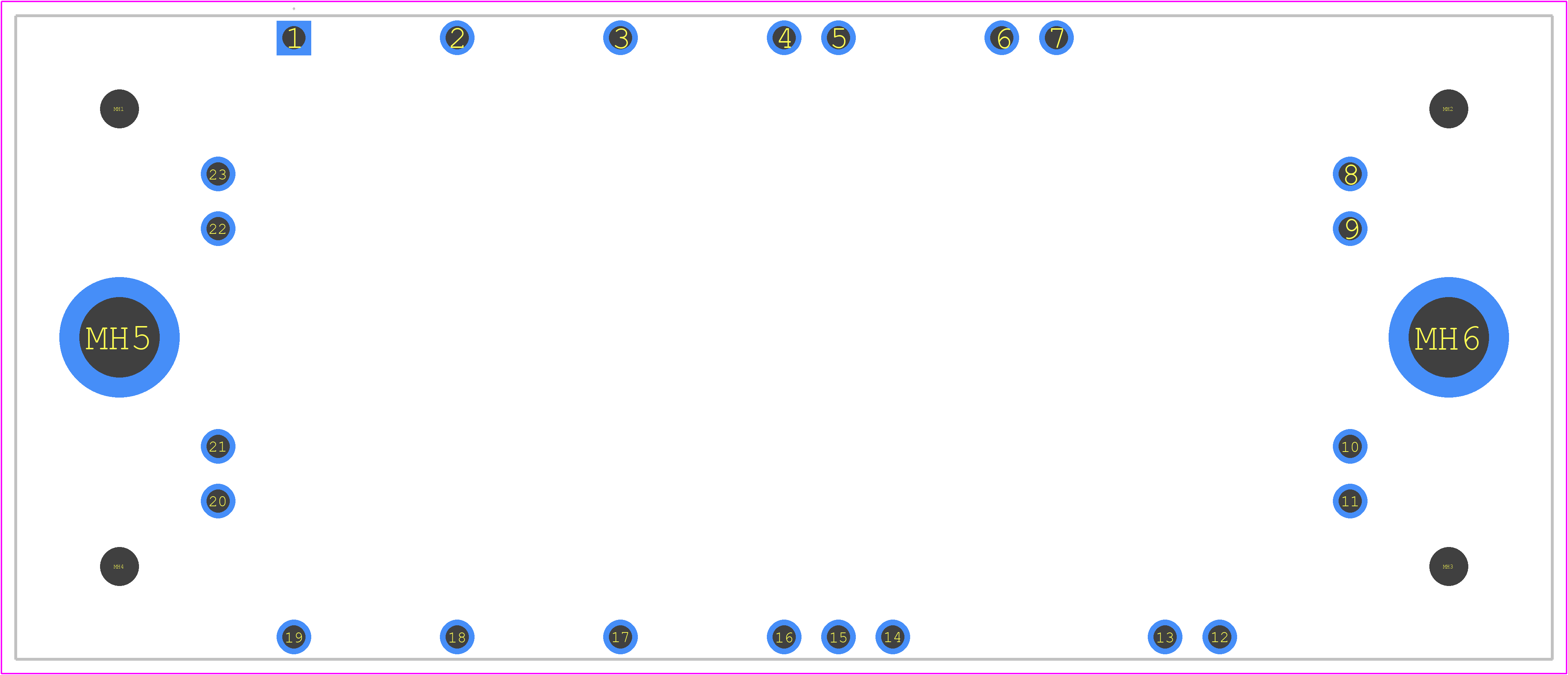

MIP25R12E1ATN-BP - MCC PCB footprint - Other - Other - MIP25R12E1ATN-BP-3

3D Models

MIP25R12E1ATN-BP - MCC - 3D model - Other - MIP25R12E1ATN-BP-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIP25R12E1ATN-BP
Part Number MIP25R12E1ATN-BP
Manufacturer MCC
Pin Count 25
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - MIP25R12E1ATN-BP-3
Released Date Aug 19, 2023
Last Modified Date May 17, 2024 4:34 PM UTC
Pinout / Pin List Click Here (Member Only)

MIP25R12E1ATN-BP Details

Manufacturer Part Number:
MIP25R12E1ATN-BP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Micro Commercial Components
YTEOL:
6
Collector Current-Max (IC):
25 A
Collector-Emitter Voltage-Max:
1200 V
VCEsat-Max:
1.84 V

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MIP25R12E1ATN-BP Overview

Use the download button to access the MIP25R12E1ATN-BP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MIP25, or try a keyword search, such as IGBTs
