Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MLP401M200EK1C - Cornell Dubilier

Description: 400 µF 200 V Aluminum Electrolytic Capacitors FlatPack 388mOhm @ 120Hz 2000 Hrs @ 85°C

Download MLP401M200EK1C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MLP401M200EK1C - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

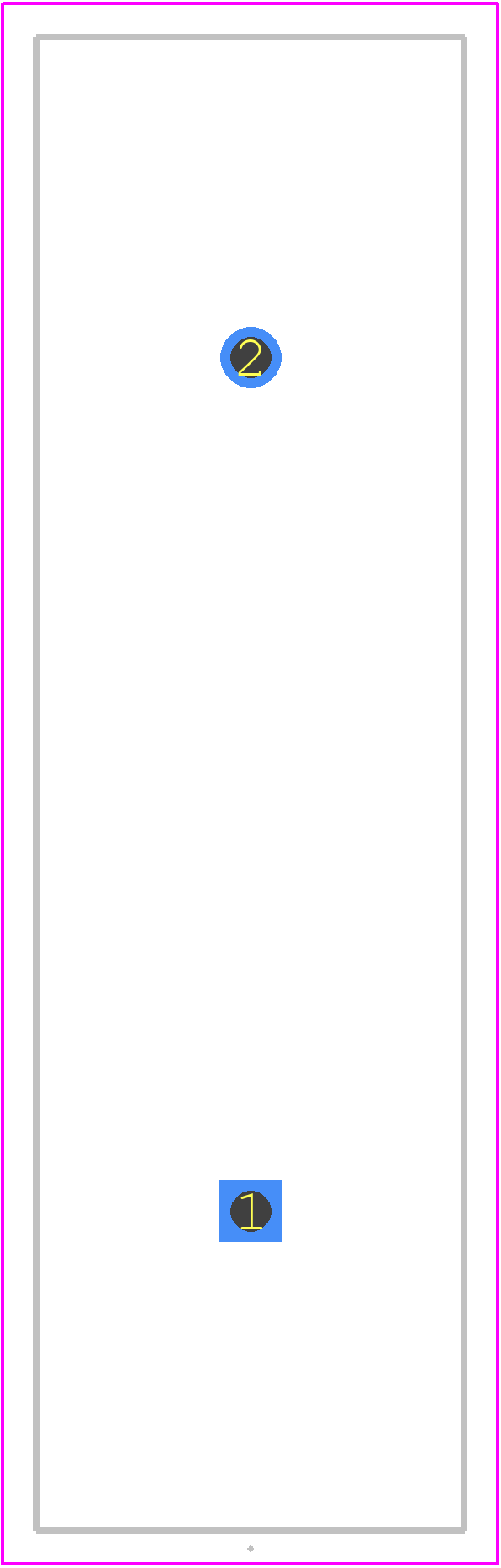

MLP401M200EK1C - Cornell Dubilier PCB footprint - Other - Other - MLP401M200EK1C-6
click to zoom
3D Models
MLP401M200EK1C - Cornell Dubilier - 3D model - Other - MLP401M200EK1C-6
click to zoom

MLP401M200EK1C Details

  • Manufacturer Part Number:

    MLP401M200EK1C

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    5

  • Capacitance:

    400 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    388 mΩ

  • Height:

    12.7 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.16 mA

  • Length:

    38.1 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    1900 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn60Pb40)

  • Terminal Pitch:

    25.4 mm

  • Terminal Shape:

    WIRE

  • Width:

    44.45 mm

MLP401M200EK1C Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MLP401M200EK1C can be found in the Cornell Dubilier Electronics Inc. application note AN-101, which provides guidelines for PCB layout and land pattern design.
  • Yes, the MLP401M200EK1C is designed to withstand high-vibration environments. It has a rugged construction and is suitable for use in applications with high mechanical stress, such as aerospace, automotive, and industrial control systems.
  • Yes, the MLP401M200EK1C is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS and WEEE directives, and can be soldered using lead-free solder alloys.
  • The maximum operating temperature range for the MLP401M200EK1C is -55°C to +125°C. However, it's recommended to derate the capacitor's voltage and capacitance values at high temperatures to ensure reliable operation.
  • Yes, the MLP401M200EK1C is suitable for use in high-altitude applications. It has a low outgassing rate and is designed to withstand the low air pressure and low humidity conditions found at high altitudes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MLP401M200EK1C Overview

Use the download button to access the MLP401M200EK1C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MLP40, or try a keyword search, such as Aluminum Electrolytic Capacitors

Parts related to MLP401M200EK1C

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
