MLS821M200EB1A - Cornell Dubilier

Description: Cap Aluminum Lytic 820uF 200V 20% (44.45 X 12.7 X 76.2mm) Screw Mount Radial 0.172 Ohm 7700mA 10000h 125°C

Download MLS821M200EB1A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MLS821M200EB1A - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

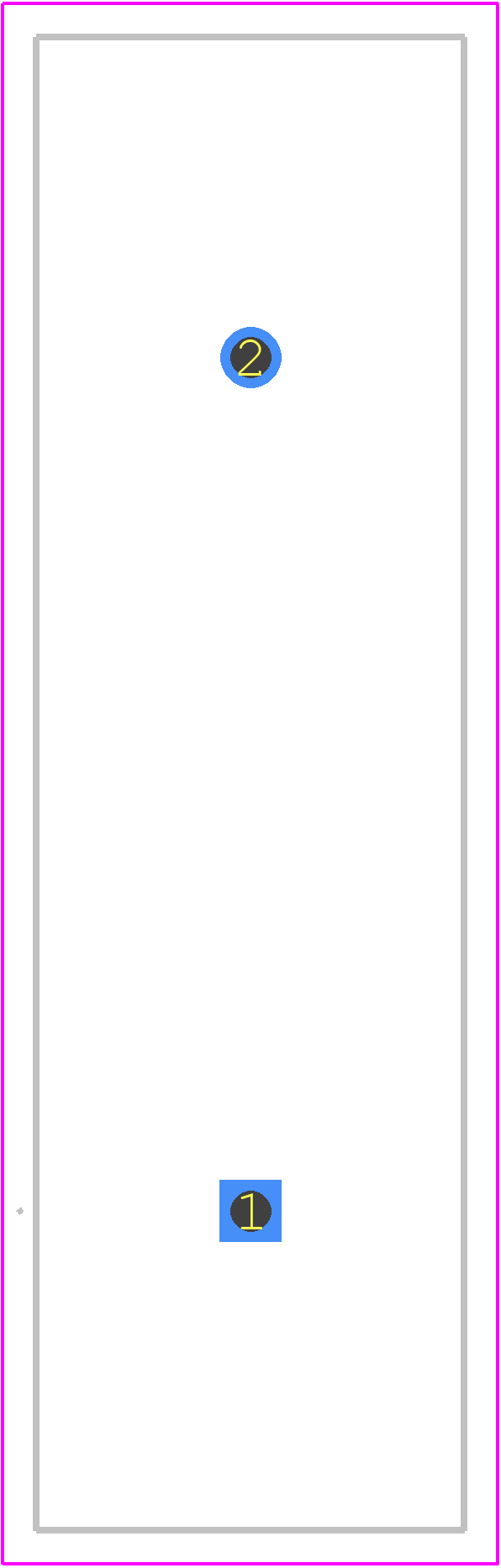

MLS821M200EB1A - Cornell Dubilier PCB footprint - Other - Other - MLS821M200EB1A-3
click to zoom
3D Models
MLS821M200EB1A - Cornell Dubilier - 3D model - Other - MLS821M200EB1A-3
click to zoom

MLS821M200EB1A Details

  • Manufacturer Part Number:

    MLS821M200EB1A

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    3

  • Capacitance:

    820 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    172 mΩ

  • Height:

    76.2 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.328 mA

  • Length:

    44.45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    7700 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb) - electroplated

  • Terminal Pitch:

    25.4 mm

  • Terminal Shape:

    WIRE

  • Width:

    12.7 mm

MLS821M200EB1A Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the MLS821M200EB1A is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly secured to the PCB using the recommended mounting method to prevent mechanical stress.
  • The ESR of the MLS821M200EB1A is not explicitly stated in the datasheet. However, according to Cornell Dubilier Electronics Inc., the typical ESR is around 1.5 ohms at 100 kHz. It's essential to consider the ESR when designing the circuit to ensure optimal performance.
  • Yes, the MLS821M200EB1A is compatible with lead-free soldering processes. The component is RoHS-compliant and meets the requirements for lead-free soldering.
  • The maximum operating temperature range for the MLS821M200EB1A is -40°C to 125°C. It's essential to ensure that the component operates within this temperature range to prevent damage or degradation.
