MM5484N - Texas Instruments

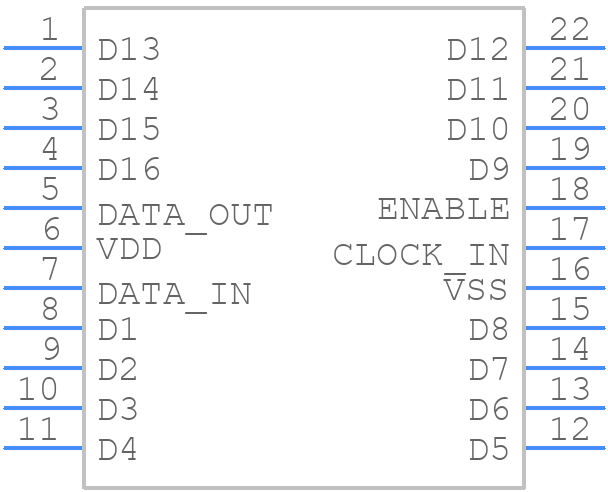

MM5484N Details

• Manufacturer Part Number:

  MM5484N

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

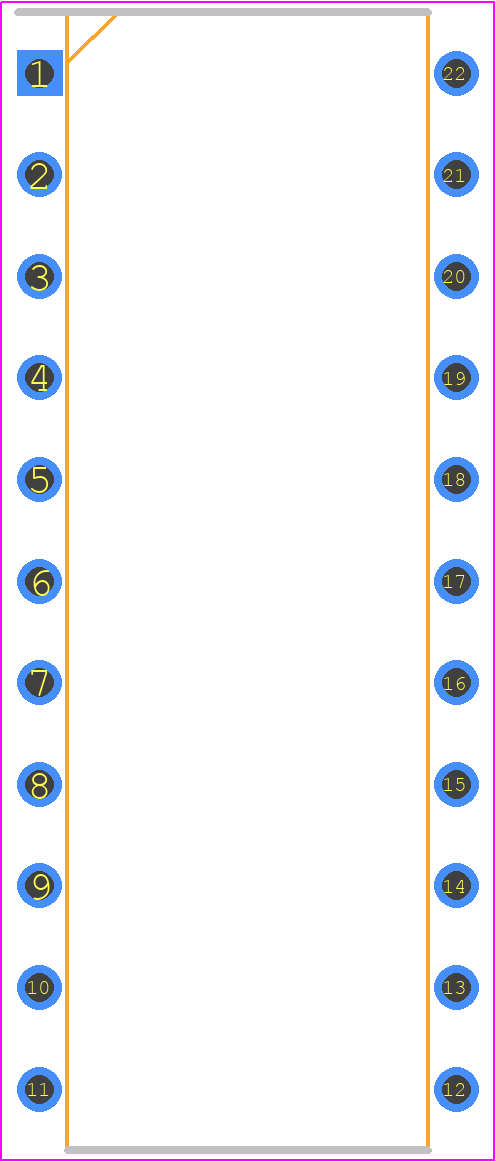

• Package Description:

  DIP, DIP22,.4

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  COMMON-ANODE

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDIP-T22

• JESD-609 Code:

  e0

• Length:

  28.105 mm

• Multiplexed Display Capability:

  NO

• Number of Digits/Characters:

  2-DIGIT

• Number of Functions:

  1

• Number of Segments:

  16

• Number of Terminals:

  22

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP22,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  9 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  NMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm

• fmax-Min:

  0.5 MHz
