MOC207M - onsemi

Description: Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Minimum BVCEO of 70 V Guaranteed; MOC216M, MOC217M; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage"; MOC205M, MOC206M, MOC207M; Minimum BVCEO of 30 V Guaranteed; Safety and Regulatory Approvals:; "Closely Matched Current Transfer Ratios; Low LED Input Current Required for Easier Logic Interfacing; MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; UL1577, 2,500 VACRMS for 1 Minute

Download MOC207M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

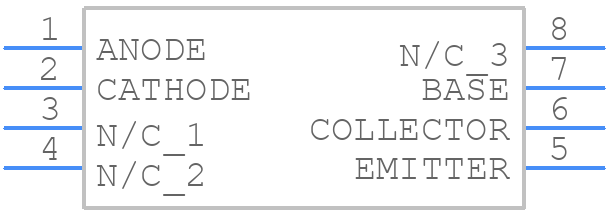

Symbol
MOC207M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC207M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-SO TALL
click to zoom
3D Models
MOC207M - onsemi - 3D model - Small Outline Packages - 8-SO TALL
click to zoom

MOC207M Details

  • Manufacturer Part Number:

    MOC207M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

MOC207M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the device, and consider using a heat sink or thermal management system to keep the junction temperature within the specified range.
  • The recommended input current for the MOC207M is 5mA to 10mA, although the device can handle up to 20mA. Exceeding the recommended current may reduce the device's lifespan.
  • While the MOC207M is suitable for high-frequency applications, its bandwidth is limited to around 10kHz. For higher frequencies, consider using a faster optocoupler or a specialized high-frequency optocoupler.
  • To minimize EMI, use a shielded cable for the input signal, keep the input and output circuits separate, and consider adding EMI filters or shielding to the PCB design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC207M Overview

Use the download button to access the MOC207M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC20, or try a keyword search, such as Optocoupler
