MOC217R2VM - onsemi

Description: MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; MOC205M, MOC206M, MOC207M; Minimum BVCEO of 70 V Guaranteed; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage"; "Closely Matched Current Transfer Ratios; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Minimum BVCEO of 30 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; MOC216M, MOC217M

Download MOC217R2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

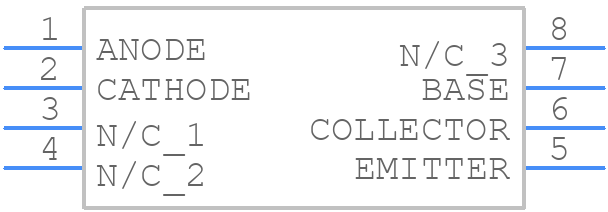

MOC217R2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC217R2VM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8 pin SO4
click to zoom
3D Models
MOC217R2VM - onsemi - 3D model - Small Outline Packages - 8 pin SO4
click to zoom

MOC217R2VM Details

  • Manufacturer Part Number:

    MOC217R2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC217R2VM Frequently Asked Questions (FAQs)

  • A good PCB layout for MOC217R2VM should minimize lead lengths, use a solid ground plane, and keep the optocoupler away from high-voltage traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, ensure that the MOC217R2VM is operated within its specified temperature range (-40°C to 125°C). Also, consider derating the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The recommended input resistor value for MOC217R2VM depends on the specific application and the desired LED current. A typical value is between 270 ohms and 1 kohms. Consult the datasheet and application notes for more information.
  • MOC217R2VM is not suitable for high-frequency applications (>1 MHz) due to its limited bandwidth. For high-frequency applications, consider using a high-speed optocoupler like the FODM8071 or FODM8151.
  • To protect MOC217R2VM from EOS and ESD, follow proper handling and storage procedures, use ESD-safe equipment, and consider adding external protection devices like TVS diodes or ESD protection arrays.
