MOC256M - onsemi

Description: UL1577, 2,500 VACRMS for 1 Minute; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Guaranteed CTR Symmetry of 2:1 Maximum; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Bidirectional AC Input; Safety and Regulatory Approvals:; Protection Against Reversed DC Bias

Download MOC256M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

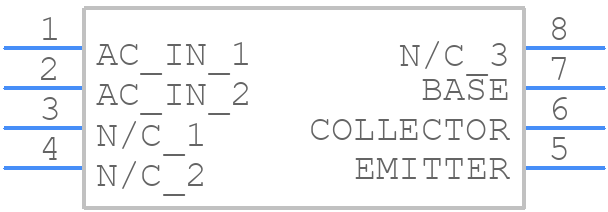

Symbol
MOC256M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC256M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC --8
click to zoom
3D Models
MOC256M - onsemi - 3D model - Small Outline Packages - SOIC --8
click to zoom

MOC256M Details

  • Manufacturer Part Number:

    MOC256M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    150%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

MOC256M Frequently Asked Questions (FAQs)

  • The MOC256M can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The MOC256M requires a minimum of 5V on the anode (pin 6) and a maximum of 20V on the cathode (pin 4) for proper biasing. Additionally, the gate (pin 1) should be biased between 0V and 5V for optimal switching performance.
  • The recommended gate resistor value for the MOC256M is between 100Ω and 1kΩ, depending on the specific application and switching frequency.
  • Yes, the MOC256M is suitable for high-frequency switching applications up to 100 kHz. However, the maximum switching frequency may be limited by the specific application and the quality of the gate drive signal.
  • To protect the MOC256M from EOS and ESD, use proper handling and storage procedures, and consider adding external protection devices such as TVS diodes or ESD protection networks.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC256M Overview

Use the download button to access the MOC256M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC25, or try a keyword search, such as Optocoupler
