MOC3023 footprint, schematic symbol and 3D model by Isocom

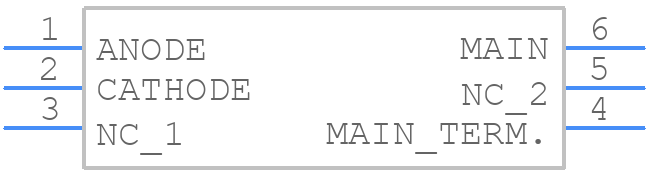

Symbol

PCB Footprints

3D Models

MOC3023 Details

The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and ensure good heat sinking to prevent overheating.
The recommended input current for the MOC3023 is 5mA to 10mA, although the device can handle up to 20mA. Higher input currents may reduce the device's lifespan.
While the MOC3023 can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher frequencies, consider using a faster optocoupler like the MOC3041 or MOC3042.
To protect the MOC3023 from electrical noise and transients, use a bypass capacitor (e.g., 100nF) between the input pins and a series resistor (e.g., 1kΩ) to limit the input current.

Expert Contribution

System Verified

Community Approved

Use the download button to access the MOC3023 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler

If you searched for MOC3023, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	MOC3023 Isocom LTD Triac Output Optocoupler, 1-Element, 7500V Isolation
	MOC3023 QT Optoelectronics Triac Output Optocoupler, 1-Element, 5300V Isolation
	MOC3023 Harris Semiconductor Triac Output Optocoupler, 1-Element
	MOC3023.300 QT Optoelectronics Triac Output Optocoupler, 1-Element, 5300V Isolation
	TLP3023 Toshiba America Electronic Components Triac Output Optocoupler, 1-Element, 5000V Isolation
For a full list of alternate parts for MOC3023, check out Findchips.com
