Part Image

MOC3052 - Lite-On

Description: Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP

Download MOC3052 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

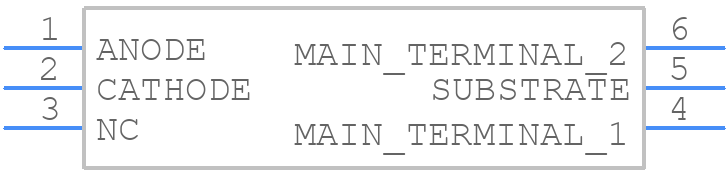

Symbol
MOC3052 - Lite-On - PCB symbol
click to zoom
PCB Footprints
MOC3052 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-DIP (0.300", 7.62mm)
click to zoom
3D Models
MOC3052 - Lite-On - 3D model - Dual-In-Line Packages - 6-DIP (0.300", 7.62mm)
click to zoom

MOC3052 Details

  • Manufacturer Part Number:

    MOC3052

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

MOC3052 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3052 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the MOC3052 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical response time of the MOC3052 is around 1-2 microseconds, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC3052 Overview

Use the download button to access the MOC3052 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
