MOC3052S footprint, schematic symbol and 3D model by Lite-On

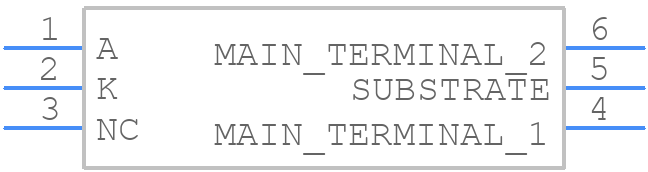

Symbol

PCB Footprints

MOC3052S Details

The recommended operating temperature range for the MOC3052S is -40°C to 100°C.
To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
The maximum allowable voltage for the MOC3052S is 530V, but it is recommended to operate the device at a voltage below 400V to ensure reliable operation.
The correct current limiting resistor for the MOC3052S can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage drop of the LED, and If is the desired forward current.
The typical response time of the MOC3052S is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the MOC3052S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
