MOC3063S - Lite-On

Description: Triac & SCR Output Optocouplers Optocoupler TRIAC

Download MOC3063S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

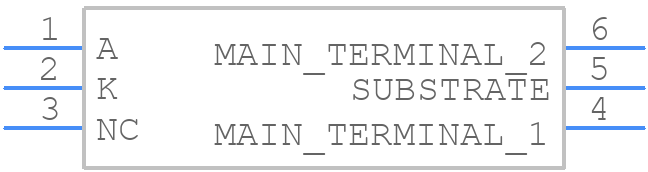

Symbol
MOC3063S - Lite-On - PCB symbol
click to zoom
PCB Footprints
MOC3063S - Lite-On PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - PDIP-6 Gull Wing
click to zoom
3D Models
MOC3063S - Lite-On - 3D model - SOT23 (6-Pin) - PDIP-6 Gull Wing
click to zoom

MOC3063S Details

  • Manufacturer Part Number:

    MOC3063S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT, DIP-6

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    8

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.005 A

  • Input Trigger Current-Nom:

    5 mA

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

MOC3063S Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3063S is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the MOC3063S is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the MOC3063S is around 1-2 microseconds, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC3063S Overview

Use the download button to access the MOC3063S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
