MOC8021M - onsemi

Description: Minimum 80V (MOC8050M); I/O interface for computers; Solid state relays; High BVCEO; Interfacing and coupling systems of different potentials and impedances; Programmable controllers; No base connection for improved noise immunity; Minimum 500% (MOC8050M); Portable electronics; Underwriters Laboratory (UL) recognizedFile #E90700, Volume 2; IEC 60747-5-2 approved (ordering option V); 500%; Appliances, measuring instruments; Minimum 1,000% (MOC8021M); Minimum 50V (MOC8021M); High current transfer ratio:

Download MOC8021M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

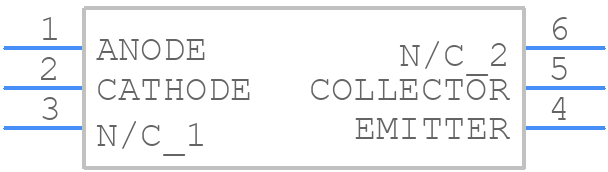

MOC8021M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC8021M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom
3D Models
MOC8021M - onsemi - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P CASE 646BX ISSUE O
click to zoom

MOC8021M Details

  • Manufacturer Part Number:

    MOC8021M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    50 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    1000%

  • Current Transfer Ratio-Nom:

    1000%

  • Dark Current-Max:

    1000 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    2 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.25 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC8021M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC8021M is -40°C to 100°C.
  • To ensure proper biasing, the input diode (anode) should be connected to a voltage source through a current-limiting resistor, and the output transistor (collector) should be connected to a load and a voltage source.
  • The maximum allowable voltage across the input diode is 5V, exceeding this voltage may cause damage to the device.
  • The current-limiting resistor should be chosen to limit the input current to the recommended maximum of 60mA, taking into account the input voltage and the forward voltage drop of the diode.
  • The typical propagation delay time for the MOC8021M is around 2-3μs, but this can vary depending on the specific application and operating conditions.
