MP108FD - Apex Microtechnology

Description: The MP108 is a 10A, 200V power operational amplifier that features a very high 300kHz of power bandwidth for piezoelectric actuator and transducer drive applications. The MP108 has optional features such as four-wire current limit sensing and external compensation. The MP108 is an “open frame” board level module that delivers outstanding performance for operation in the industrial temperature range that rivals more traditional, more expensive hybrid components and can prove to be an excellent substitution

Download MP108FD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

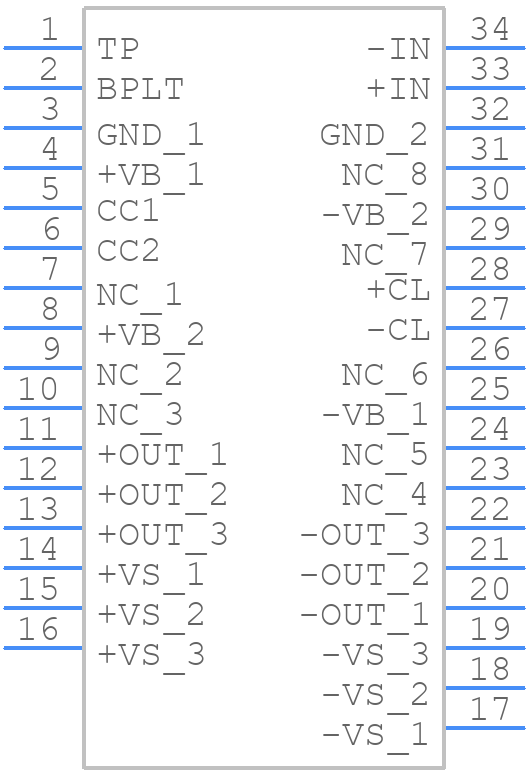

Symbol
MP108FD - Apex Microtechnology - PCB symbol
click to zoom

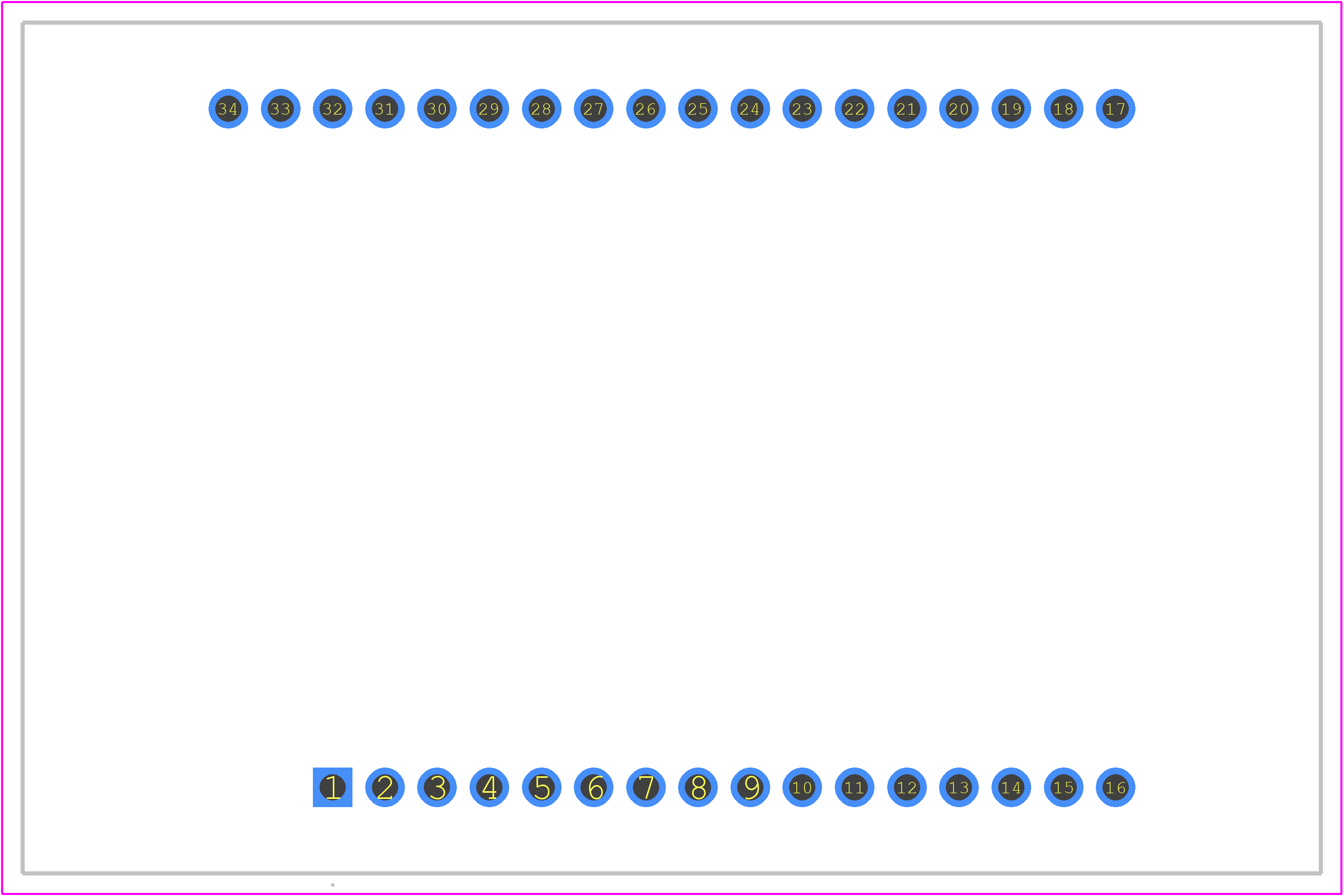

PCB Footprints
MP108FD - Apex Microtechnology PCB footprint - Other - Other - FD
click to zoom
3D Models
MP108FD - Apex Microtechnology - 3D model - Other - FD
click to zoom

MP108FD Details

  • Manufacturer Part Number:

    MP108FD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DMA

  • Package Description:

    DIP-34

  • Pin Count:

    34

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Nom:

    92 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-XDMA-P34

  • Neg Supply Voltage Limit-Max:

    -100 V

  • Neg Supply Voltage-Nom (Vsup):

    -75 V

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Slew Rate-Nom:

    170 V/us

  • Supply Voltage Limit-Max:

    100 V

  • Supply Voltage-Nom (Vsup):

    75 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

MP108FD Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 2-layer PCB with a thermal relief pattern on the bottom layer to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation at high temperatures, Apex recommends derating the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the device.
  • Apex recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close to the input pins as possible to minimize noise and ripple.
  • Apex recommends using a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. Additionally, a TVS diode or a zener diode can be used to clamp the input voltage to a safe level.
  • Apex recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close to the output pins as possible to minimize noise and ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP108FD Overview

Use the download button to access the MP108FD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP108, or try a keyword search, such as Operational Amplifiers
