Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a heat sink or thermal pad can be used to further improve thermal performance.
To ensure reliable operation at high temperatures, it's essential to follow Apex Microtechnology's recommended derating guidelines for the MP118FD. This includes reducing the output current and voltage as temperature increases. Additionally, ensuring good thermal management and using a heat sink or thermal pad can help to reduce the junction temperature and improve reliability.
The MP118FD is a high-power, high-voltage amplifier typically used in applications such as piezoelectric drivers, ultrasound transducers, and high-voltage power supplies. It's also used in industrial and medical applications where high voltage and high current are required.
To protect the MP118FD from overvoltage and overcurrent conditions, Apex Microtechnology recommends using external protection circuits such as voltage clamps, current limiters, and fuses. Additionally, ensuring that the device is operated within its recommended specifications and using a suitable heat sink or thermal pad can help to prevent damage from overvoltage and overcurrent conditions.
Apex Microtechnology recommends storing the MP118FD in a dry, cool place away from direct sunlight and moisture. The device should be handled with care to prevent mechanical damage, and electrostatic discharge (ESD) precautions should be taken to prevent damage from static electricity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP118FD Overview

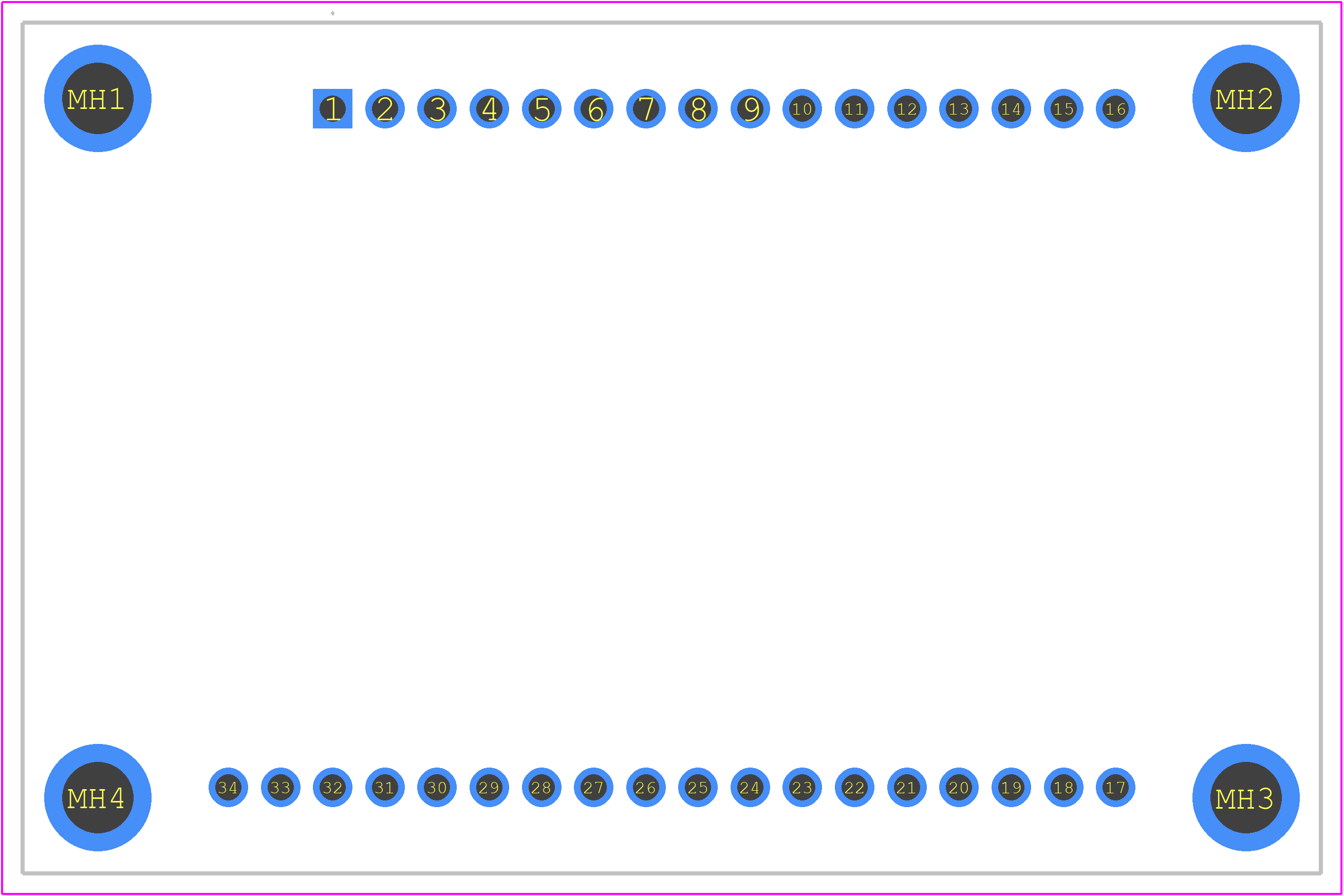

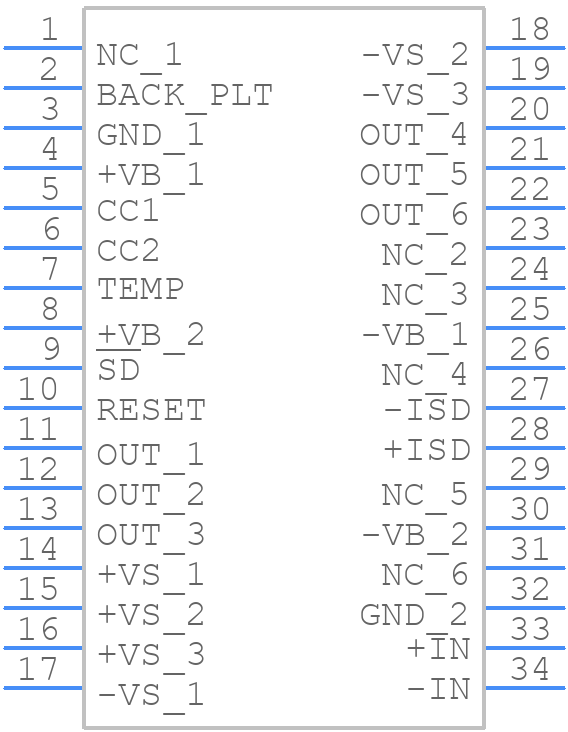

Use the download button to access the MP118FD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP118,
or try a keyword search, such as Operational Amplifiers
