MP118FDA - Apex Microtechnology

Description: The MP118 is a low quiescent, high power dissipation operational amplifier that integrates several new layers of onboard circuit protection including over current shut down. Designed as an open frame product form factor with a footprint measuring just 26cm2 (4in2), the MP118FD exhibits just 25mA of quiescent current and is capable of 100W of internal power dissipation. In addition to temperature shut down and external shut down, the device provides a new twist that replaces over current limit functionality

Download MP118FDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

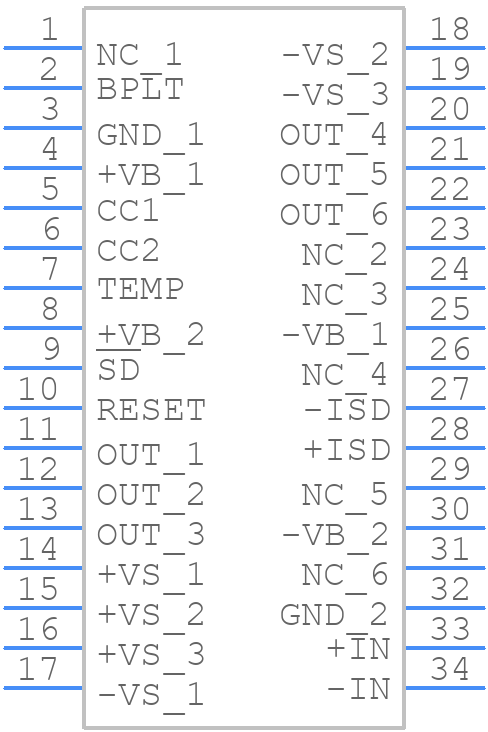

MP118FDA - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

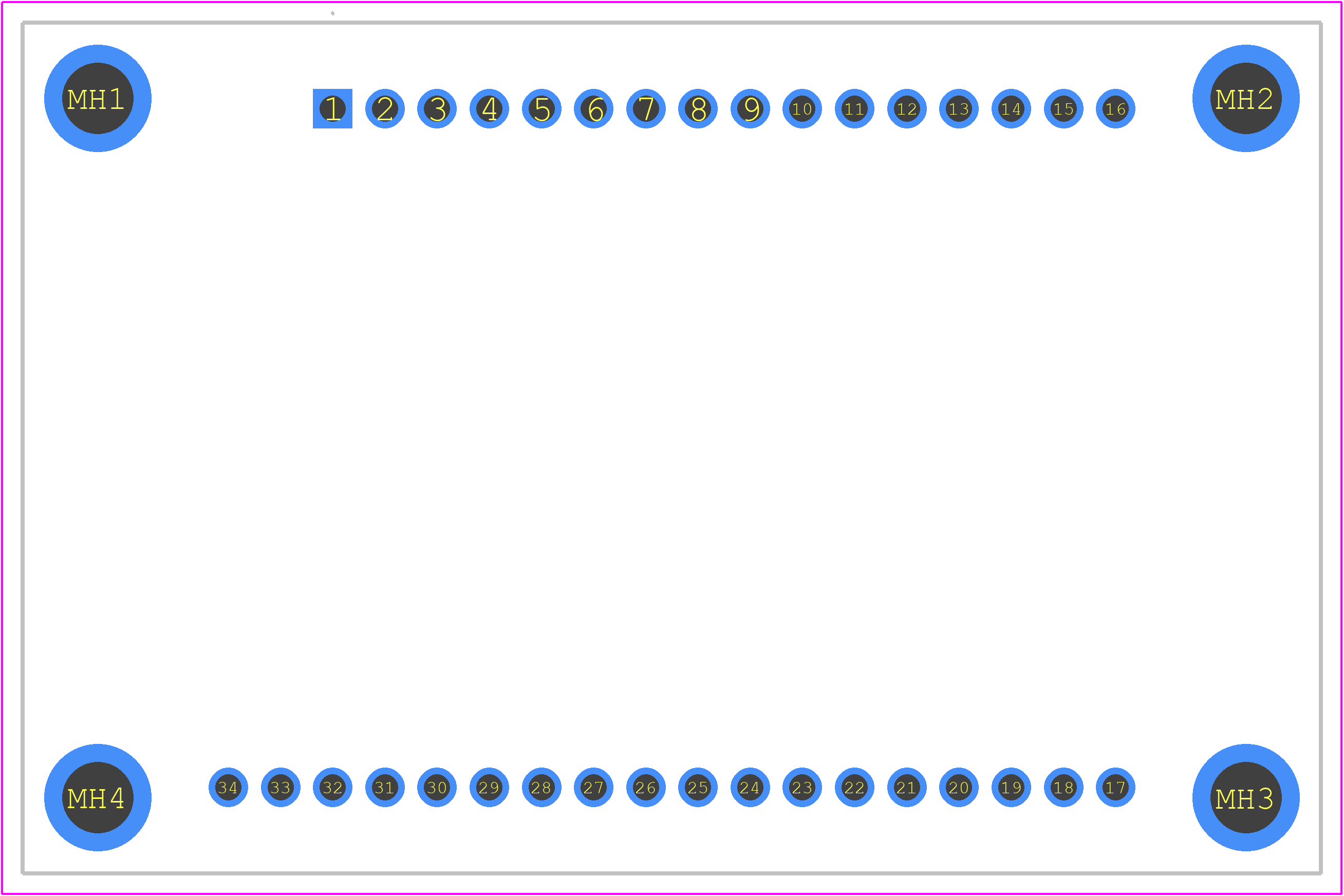

MP118FDA - Apex Microtechnology PCB footprint - Other - Other - MP118FDA
click to zoom
3D Models
MP118FDA - Apex Microtechnology - 3D model - Other - MP118FDA
click to zoom

MP118FDA Details

  • Manufacturer Part Number:

    MP118FDA

  • Manufacturer:

    Apex Microtechnology Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP118FDA Overview

Use the download button to access the MP118FDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP118, or try a keyword search, such as Operational Amplifiers
