MP206KP - Apex Microtechnology

Description: 2-Channel High Output Power Amplifier Print Head Driver, Optimized Solution to Drive Dynamic Capacitive Loads, Peak Output Current: 21A, Slew Rate: 100V/µs (at 180nF load), Maximum Pulse Voltage: up to ±60V (with boost supplies), Temperature Sensor, 30-pin Open Frame Package

Download MP206KP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MP206KP model

Email notifications will be applied after download.

Send part feedback

Symbol

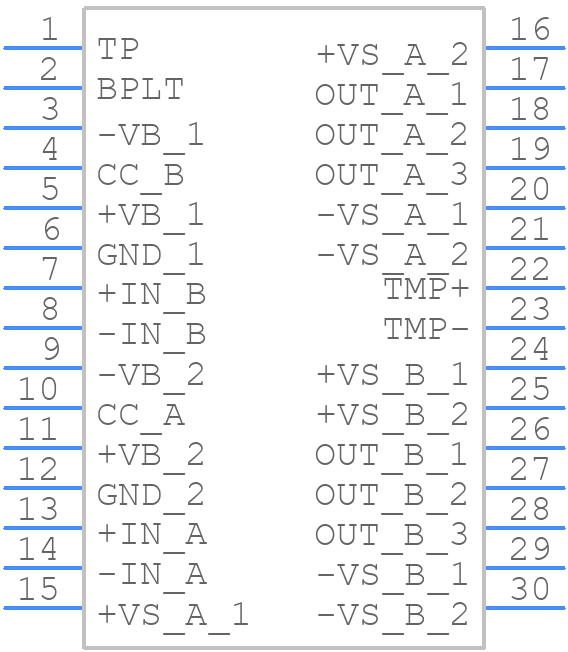

MP206KP - Apex Microtechnology - PCB symbol

PCB Footprints

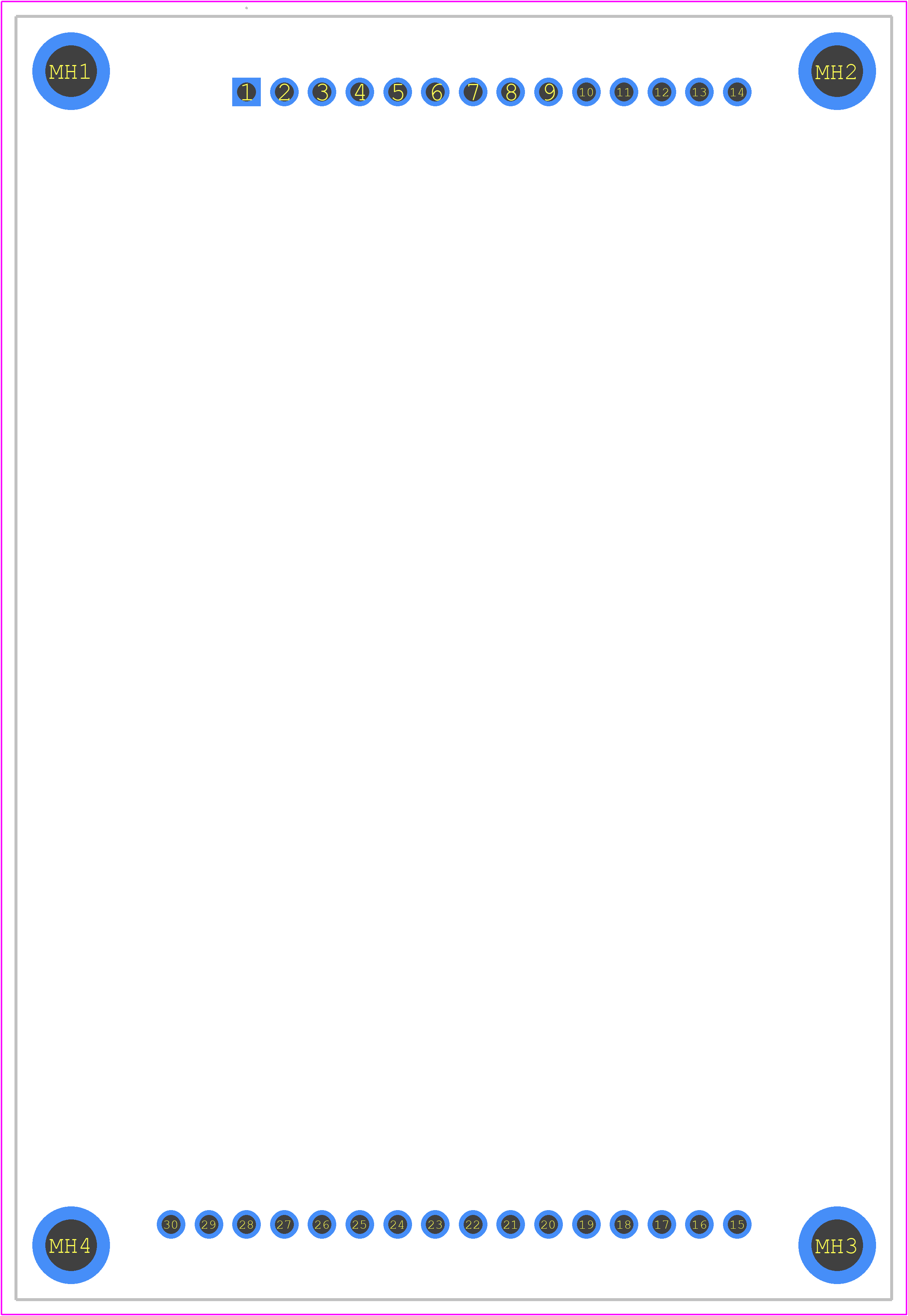

MP206KP - Apex Microtechnology PCB footprint - Other - Other - KP 30-pin Open Frame-1
