MP2664GG-XXXX - Monolithic Power Systems (MPS)

Description: 500mA, 5V USB, I2C-Controlled Battery Charger with Power Path Management for Single-Cell Li-Ion Battery in QFN Package

Download MP2664GG-XXXX Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MP2664GG-XXXX model

Email notifications will be applied after download.

Send part feedback

Symbol

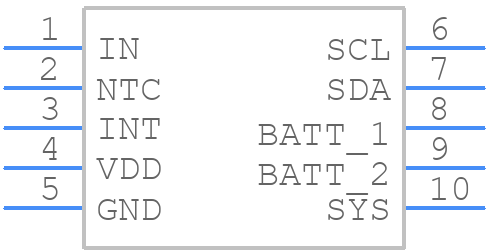

MP2664GG-XXXX - Monolithic Power Systems (MPS) - PCB symbol

PCB Footprints

MP2664GG-XXXX - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-10 (2mmx2mm)

3D Models

MP2664GG-XXXX - Monolithic Power Systems (MPS) - 3D model - Other - QFN-10 (2mmx2mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2664GG-XXXX
Part Number MP2664GG-XXXX
Manufacturer Monolithic Power Systems (MPS)
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN-10 (2mmx2mm)
Released Date Oct 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP2664GG-XXXX Details

Manufacturer Part Number:
MP2664GG-XXXX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2019-06-21
Manufacturer:
Monolithic Power Systems
YTEOL:
6
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
JESD-30 Code:
S-XQCC-N10
JESD-609 Code:
e3
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC10,.08SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
455 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.35 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm

MP2664GG-XXXX Frequently Asked Questions (FAQs)

The MP2664GG can handle up to 24V input voltage, but it's recommended to keep it below 20V for optimal performance and reliability.
The output voltage of the MP2664GG can be adjusted using the FB pin and an external resistor divider network. You can use the formula provided in the datasheet to calculate the required resistor values for your desired output voltage.
The datasheet recommends a minimum input capacitance of 10uF, but it's recommended to use a higher value (e.g. 22uF) to ensure stable operation and reduce input voltage ripple.
The MP2664GG is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Consult the datasheet for more information on thermal derating.
To ensure stability, make sure to follow the layout guidelines provided in the datasheet, keep the input and output capacitors close to the IC, and use a low-ESR output capacitor. Additionally, avoid using long traces and minimize the loop area of the power stage.

Trust Checks

Community Provided

System Verified

Community Approved

MP2664GG-XXXX Overview

Use the download button to access the MP2664GG-XXXX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MP266, or try a keyword search, such as Power Management Circuits
