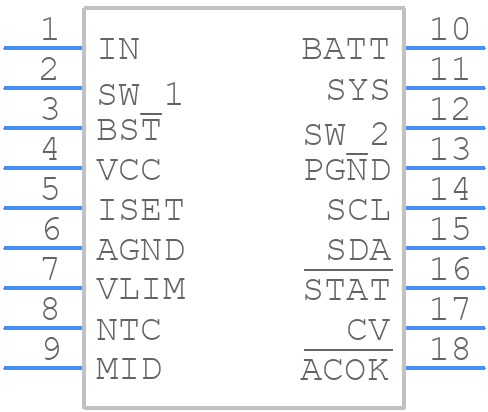

MP2672GD-0000-Z - Monolithic Power Systems (MPS)

MP2672GD-0000-Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the MP2672GD-0000-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-3 layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
• How do I optimize the output voltage accuracy?
  To optimize output voltage accuracy, ensure the feedback resistors (R1 and R2) have a 1% tolerance or better. Use a high-precision voltage reference, and consider adding a capacitor (e.g., 10nF) in parallel with R2 to filter out noise. Additionally, minimize the distance between the feedback pin and the output capacitor to reduce noise coupling.
• What is the recommended input capacitor type and value?
  For the MP2672GD-0000-Z, use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7μF to 10μF. This will help filter out input noise and ensure stable operation. Avoid using electrolytic capacitors, as they may not provide sufficient filtering.
• How do I handle the device's thermal shutdown feature?
  The MP2672GD-0000-Z has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. To handle this, ensure good airflow around the device, and consider adding a heat sink or thermal pad. If thermal shutdown occurs, the device will automatically restart once the junction temperature drops below 120°C.
• What is the recommended output capacitor type and value?
  For the MP2672GD-0000-Z, use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10μF to 22μF. This will help filter out output noise and ensure stable operation. Avoid using electrolytic capacitors, as they may not provide sufficient filtering.
