Part Image

MP34DT05TR - STMicroelectronics

Description: MEMS audio sensor omnidirectional digital microphone HCLGA-4LD , 1.6V ~ 3.6V , 650µA , 2.4 MHz , -40°C to +85°C

Download MP34DT05TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

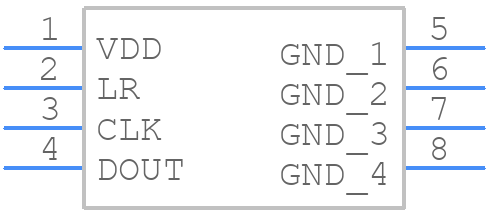

Symbol
MP34DT05TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MP34DT05TR - STMicroelectronics PCB footprint - Other - Other - HCLGA (3 x 4 x 1 mm) 4LD_2026
click to zoom
3D Models
MP34DT05TR - STMicroelectronics - 3D model - Other - HCLGA (3 x 4 x 1 mm) 4LD_2026
click to zoom

MP34DT05TR Details

  • Manufacturer Part Number:

    MP34DT05TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HCLGA-4

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    MICROPHONES

  • JESD-30 Code:

    R-XBGA-N4

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TLGA

  • Package Equivalence Code:

    LGA4,2X2,54

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

MP34DT05TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the MP34DT05TR involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the IC and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to use the recommended output capacitor values and types, and to place them close to the IC. Additionally, the input voltage should be well-regulated, and the input capacitor should be of high quality.
  • The MP34DT05TR can handle input voltages up to 45V, but it's recommended to keep the input voltage below 40V to ensure reliable operation and to prevent overheating.
  • The output voltage of the MP34DT05TR can be calculated using the formula: Vout = (1 + R2/R1) * Vref, where R1 and R2 are the resistors in the feedback network, and Vref is the internal reference voltage (typically 1.25V).
  • The MP34DT05TR can deliver up to 500mA of output current, but it's recommended to keep the output current below 400mA to ensure reliable operation and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP34DT05TR Overview

Use the download button to access the MP34DT05TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP34D, or try a keyword search, such as Other Consumer ICs
