MP5013AGJ-Z - Monolithic Power Systems (MPS)

Description: 5 V, 5 A Programmable Current-Limit Switch with Over-Voltage Clamp and Slew-Rate Control in TSOT23-8

Download MP5013AGJ-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

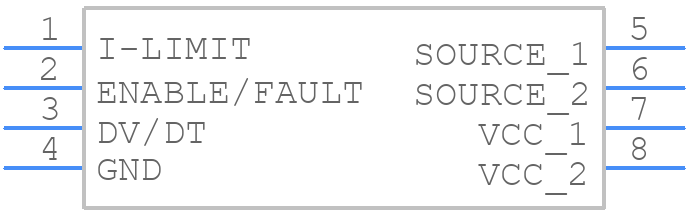

MP5013AGJ-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP5013AGJ-Z - Monolithic Power Systems (MPS) PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT-23-8
click to zoom
3D Models
MP5013AGJ-Z - Monolithic Power Systems (MPS) - 3D model - SOT23 (8-Pin) - TSOT-23-8
click to zoom

MP5013AGJ-Z Details

  • Manufacturer Part Number:

    MP5013AGJ-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.21

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

MP5013AGJ-Z Frequently Asked Questions (FAQs)

  • The MP5013AGJ-Z can handle a maximum input voltage of 24V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet, including the use of a suitable output capacitor and a stable input voltage.
  • The MP5013AGJ-Z can provide a maximum output current of 3A, but it's recommended to operate within the specified output current range of 0.1A to 2A for optimal performance and reliability.
  • The output voltage of the MP5013AGJ-Z can be adjusted by using an external resistor divider network connected to the FB pin, as described in the datasheet.
  • The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn the regulator on and off as needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP5013AGJ-Z Overview

Use the download button to access the MP5013AGJ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP501, or try a keyword search, such as Power Management Circuits
