MP5016GQH-L-Z - Monolithic Power Systems (MPS)

Description: Power Switch ICs - Power Distribution 2.7-15V,0.7-5A,Current Limit Switch with Over-Voltage Clamp and Reverse Blocking

Download MP5016GQH-L-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

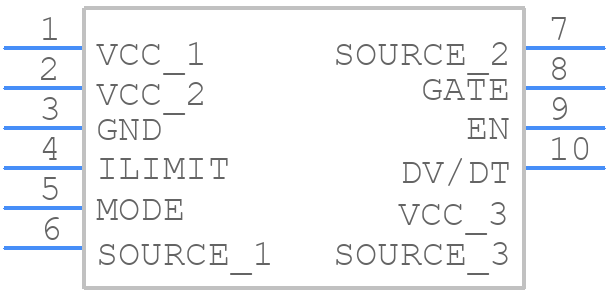

MP5016GQH-L-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP5016GQH-L-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-10 (1.5mmx2mm )
click to zoom
3D Models
MP5016GQH-L-Z - Monolithic Power Systems (MPS) - 3D model - Other - QFN-10 (1.5mmx2mm )
click to zoom

MP5016GQH-L-Z Details

  • Manufacturer Part Number:

    MP5016GQH-L-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-06-21

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH
