MP5048AGU-Z - Monolithic Power Systems (MPS)

Description: Hot Swap Voltage Controllers 60V, 4A, 14mohm Rdson, Hot-Swap Intelli-Fuse Solution

Download MP5048AGU-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

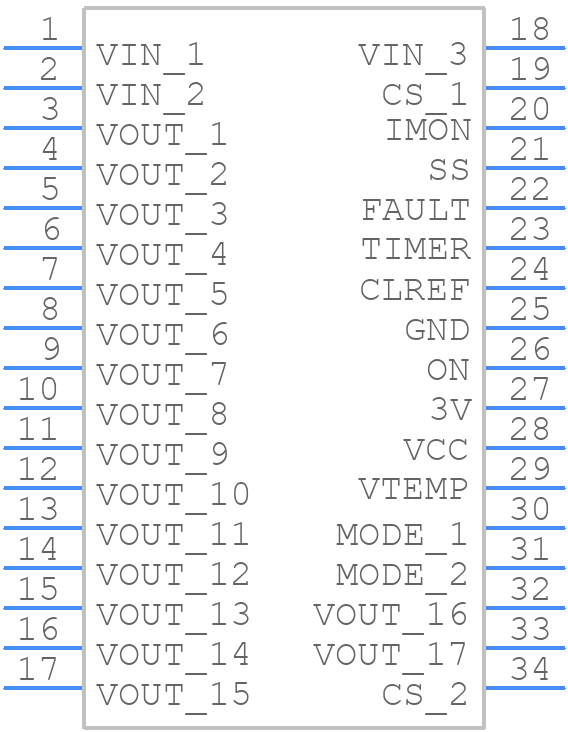

MP5048AGU-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP5048AGU-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-30 (5mmx5mm)
click to zoom
3D Models
MP5048AGU-Z - Monolithic Power Systems (MPS) - 3D model - Other - QFN-30 (5mmx5mm)
click to zoom

MP5048AGU-Z Details

  • Manufacturer Part Number:

    MP5048AGU-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7

  • Analog IC - Other Type:

    eFUSE

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

MP5048AGU-Z Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MP5048AGU-Z is 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
  • The maximum output current that the MP5048AGU-Z can deliver is 4A, but it's recommended to keep it below 3.5A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output pin and the ground pin. The resistors should be chosen such that the output voltage is within the desired range.
  • The thermal shutdown temperature of the MP5048AGU-Z is typically around 150°C, but it can vary depending on the specific application and operating conditions.
