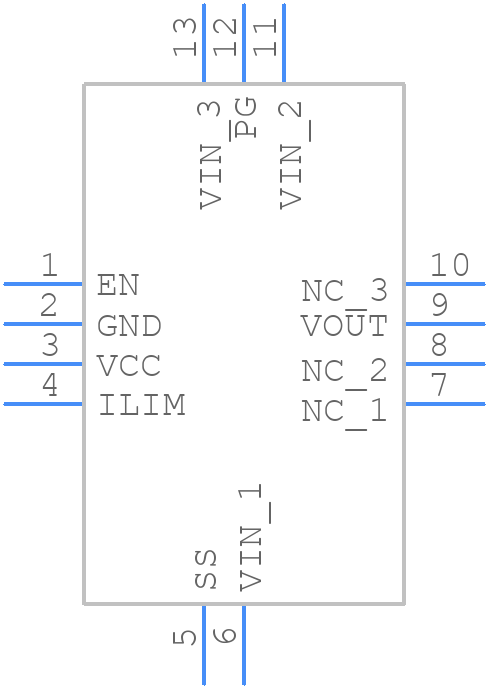

MP5073GG - Monolithic Power Systems (MPS)

MP5073GG Details

• Manufacturer Part Number:

  MP5073GG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-12

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  6.98

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  Load switch

• JESD-30 Code:

  S-XQCC-N12

• Length:

  2 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC12,0.8SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  0.5 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +2.6V

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  2 mm
