A good PCB layout is crucial for the MP5090GC-Z. It's recommended to follow a 4-layer stackup with a solid ground plane, keep the input and output capacitors close to the IC, and use wide traces for the power paths. A demo board or evaluation board from Monolithic Power Systems can serve as a reference design.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, check that the output capacitor has a low ESR and is properly decoupled from the input. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and efficiency. Using a different inductor may affect the device's stability, efficiency, or output voltage regulation.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and layout meet the recommended specifications. Use an oscilloscope to check for oscillations or ringing on the output. If issues persist, consult the application notes or contact Monolithic Power Systems' technical support for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP5090GC-Z Overview

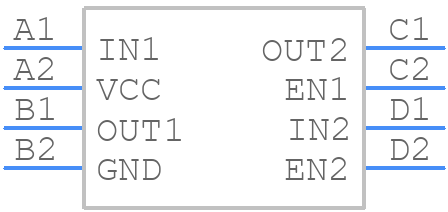

Use the download button to access the MP5090GC-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP509,
or try a keyword search, such as Power Management Circuits
