A good PCB layout for the MP62341DS-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the high-current paths short and wide, and avoid routing high-frequency signals near the device.
To optimize the output filter design, consider the output capacitor's ESR, ESL, and capacitance value. A good starting point is to use a low-ESR capacitor (e.g., ceramic or polymer) with a value between 10uF to 22uF. The inductor value should be chosen based on the desired ripple current and output voltage. Use the datasheet's recommended values as a starting point and simulate the design using a tool like LTspice.
The MP62341DS-LF-Z can tolerate a certain amount of input voltage ripple, but it's not explicitly stated in the datasheet. As a general rule, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent damage to the device.
The MP62341DS-LF-Z is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to handle the increased thermal stress.
To troubleshoot the MP62341DS-LF-Z, start by verifying the input voltage, output voltage, and enable pin signals. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to monitor the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes, or contact Monolithic Power Systems' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP62341DS-LF-Z Overview

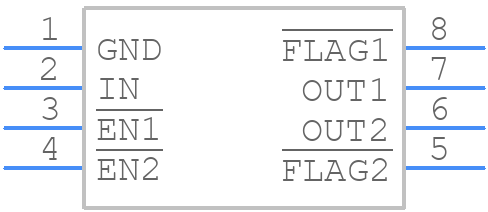

Use the download button to access the MP62341DS-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP623,
or try a keyword search, such as Power Management Circuits
