A good PCB layout for the MP6536DU-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Use a low-ESR output capacitor (e.g., X5R or X7R ceramic) and a high-quality input capacitor. Avoid using capacitors with high equivalent series resistance (ESR) or inductance. Also, ensure that the feedback network is properly compensated to prevent oscillations.
The MP6536DU-LF-Z can tolerate a certain amount of input voltage ripple, but excessive ripple can affect its performance and reliability. As a general guideline, keep the input voltage ripple below 10% of the nominal input voltage. For example, if the nominal input voltage is 12V, the ripple should be less than 1.2V (peak-to-peak).
The MP6536DU-LF-Z is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. If you plan to use the device in a high-temperature environment, ensure that you provide adequate cooling and follow the recommended thermal design guidelines. Also, consider derating the device's output current and voltage to prevent overheating.
To troubleshoot issues with the MP6536DU-LF-Z, follow a systematic approach. First, verify that the input voltage and current are within the recommended specifications. Check the output voltage and current to ensure they are within the expected range. Use an oscilloscope to inspect the output voltage waveform for signs of oscillation or instability. Check the device's thermal performance using an infrared thermometer or a thermocouple. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP6536DU-LF-Z Overview

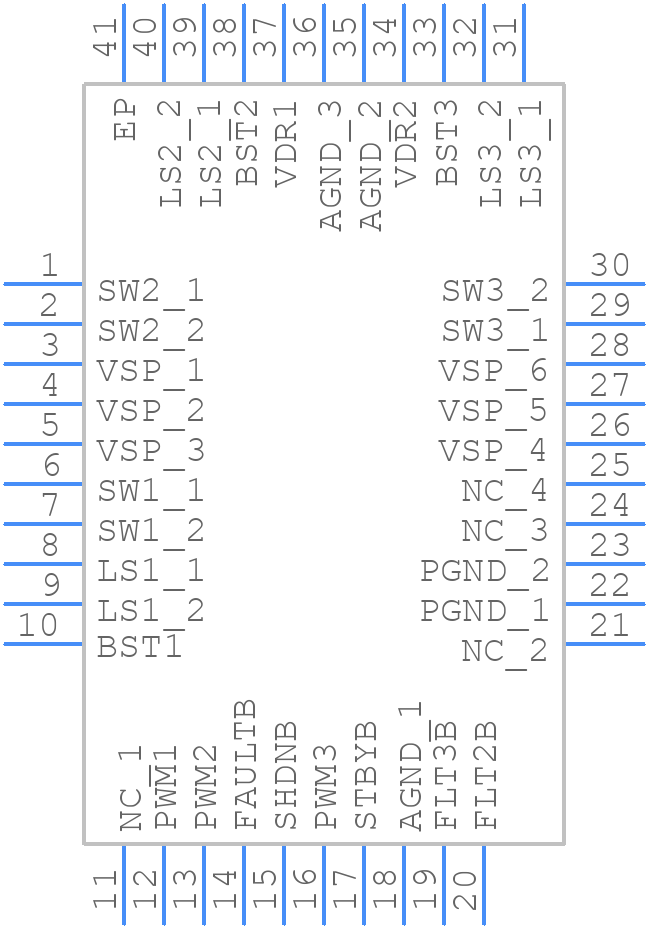

Use the download button to access the MP6536DU-LF-Z schematic symbol, PCB footprint, and 3D model.
