A good PCB layout for the MP6541AGQKT-Z should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the switching node (SW pin) away from sensitive analog nodes, and use a solid ground plane to reduce EMI.
To optimize output voltage accuracy, ensure that the feedback resistors (RFBT and RFB) are of high precision (1% or better) and have a low temperature coefficient. Also, keep the feedback network away from noise sources, and use a low-noise reference voltage source. Finally, consider using a voltage reference IC with a high accuracy and low drift.
The MP6541AGQKT-Z can drive a maximum capacitive load of 10uF. However, it's recommended to derate this value based on the specific application and PCB layout. Excessive capacitive loading can lead to instability and reduced performance.
To prevent overheating during high-current operation, ensure that the IC is mounted on a heat sink or a thermal pad with a sufficient thermal conductivity. Also, reduce the ambient temperature, and consider using a fan or other cooling mechanisms. Finally, monitor the IC's temperature and reduce the output current if necessary.
The recommended input capacitor type is a low-ESR ceramic capacitor (X5R or X7R) with a value of 10uF to 22uF. This helps to filter out input noise and reduce the risk of oscillation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP6541AGQKT-Z Overview

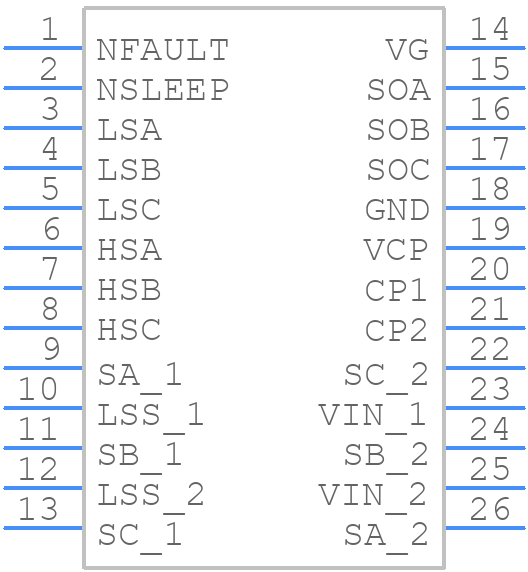

Use the download button to access the MP6541AGQKT-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP654,
or try a keyword search, such as Motion Control Electronics
