MP6615GQKT-P - Monolithic Power Systems (MPS)

Description: Motor / Motion / Ignition Controllers & Drivers 40V, 8A, H-Bridge DC Motor Driver

Download MP6615GQKT-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

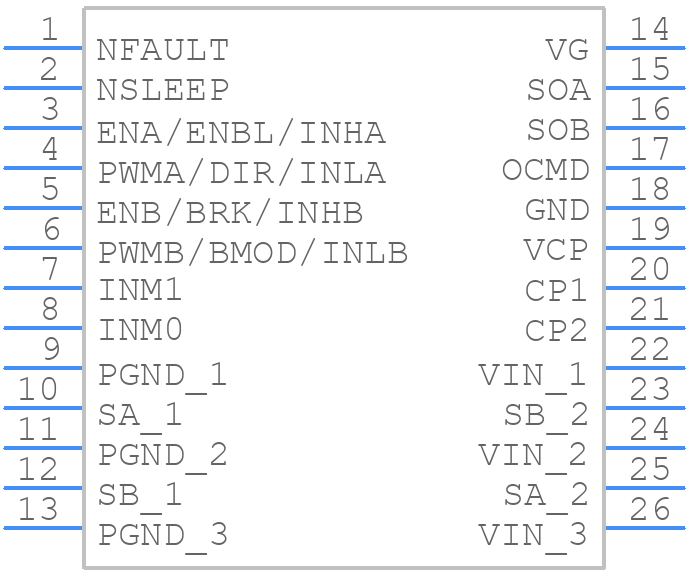

MP6615GQKT-P - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints

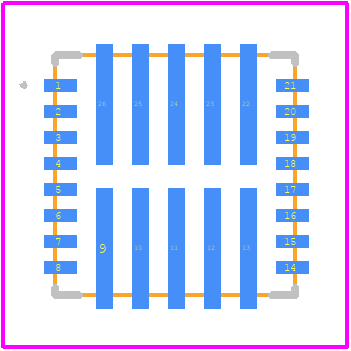

MP6615GQKT-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP6615GQKT-P-1
click to zoom
3D Models
MP6615GQKT-P - Monolithic Power Systems (MPS) - 3D model - Other - MP6615GQKT-P-1
click to zoom

MP6615GQKT-P Details

  • Manufacturer Part Number:

    MP6615GQKT-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-26

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N26

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC26,.12SQ(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    6 mm

MP6615GQKT-P Frequently Asked Questions (FAQs)

  • The maximum input voltage is 26V, but it's recommended to keep it below 24V for reliable operation and to prevent damage to the internal components.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 15V.
  • The maximum output current is 1.5A, but it's recommended to keep it below 1.2A for reliable operation and to prevent overheating.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be found in the datasheet, and it's typically around 90% for the MP6615GQKT-P.
