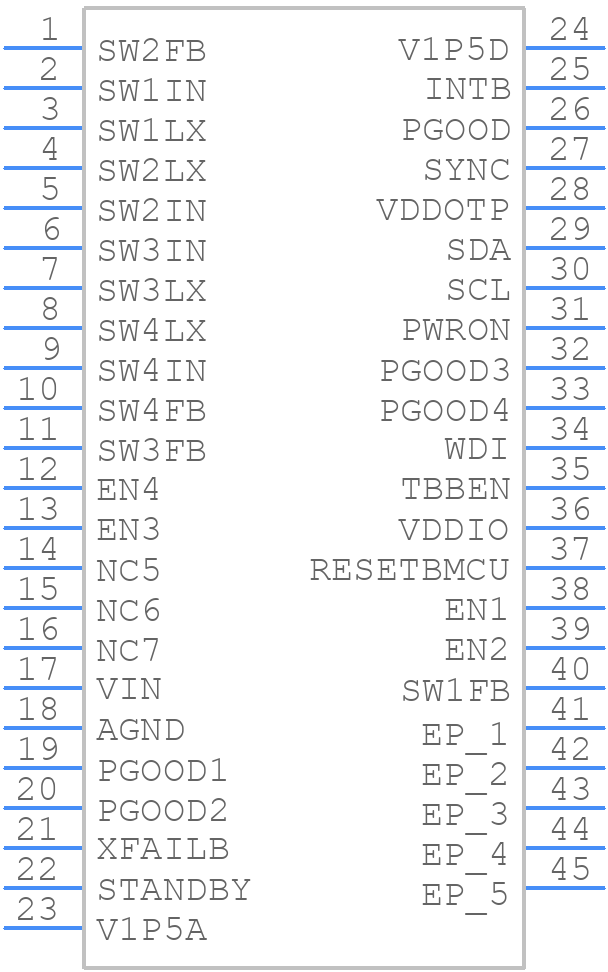

MPF5024CMBA0ES - NXP

MPF5024CMBA0ES Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the MPF5024CMBA0ES?
  NXP provides a recommended PCB layout in the application note AN11586, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
• How do I select the correct input and output capacitors for the MPF5024CMBA0ES?
  The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. NXP provides guidelines for capacitor selection in the datasheet and application notes, including the importance of using low-ESR capacitors to minimize voltage ripple and ensure stability.
• What is the maximum operating temperature range for the MPF5024CMBA0ES?
  The MPF5024CMBA0ES has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating and ensure reliable operation.
• How do I configure the MPF5024CMBA0ES for a specific output voltage?
  The output voltage of the MPF5024CMBA0ES can be adjusted using the feedback resistors (RFBT and RFB) and the voltage reference (VREF) pin. NXP provides a formula to calculate the required resistor values for a specific output voltage in the datasheet and application notes.
• What are the key considerations for EMI filtering and shielding when using the MPF5024CMBA0ES?
  To minimize EMI, it's essential to use proper filtering and shielding techniques, such as using ferrite beads, capacitors, and shielding cans. NXP provides guidelines for EMI filtering and shielding in the application notes, including the importance of keeping the switching node (SW) away from sensitive analog circuits.
