Description:• Wide 5.5V to 40V Operating Input Range
• High-Side and Low-Side Drivers Connected
in Half-Bridge Configurations
• Up to 0.8A Output Current
• Typical 1.3Ω RDS(ON) (HS + LS)
• Very Low Quiescent Current in Standby
Mode versus Total Temperature Range
• Outputs Are Short-Circuit Protected
• Over-Temperature Protection and PreWarning
• Under-Voltage Lockout (UVLO) and OverVoltage Lockout (OVLO)
• Serial Data Interface
• Diagnostic Functions include: Shorted
Output, Open-Load, Over-Temperature
(OT
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with sufficient capacitance, and use a low-ESR output capacitor. Also, avoid using long, narrow traces and keep the feedback network as short as possible.
The maximum allowed input voltage ripple for the MPQ6628GF-AEC1-Z is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent damage to the device.
The MPQ6628GF-AEC1-Z is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management guidelines in the datasheet to ensure reliable operation in high-temperature environments. Additionally, make sure to follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
To troubleshoot issues with the MPQ6628GF-AEC1-Z, start by verifying the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Also, review the PCB layout and component values to ensure they meet the recommended guidelines in the datasheet. If the issue persists, consult the application notes and technical support resources provided by Monolithic Power Systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ6628GF-AEC1-Z Overview

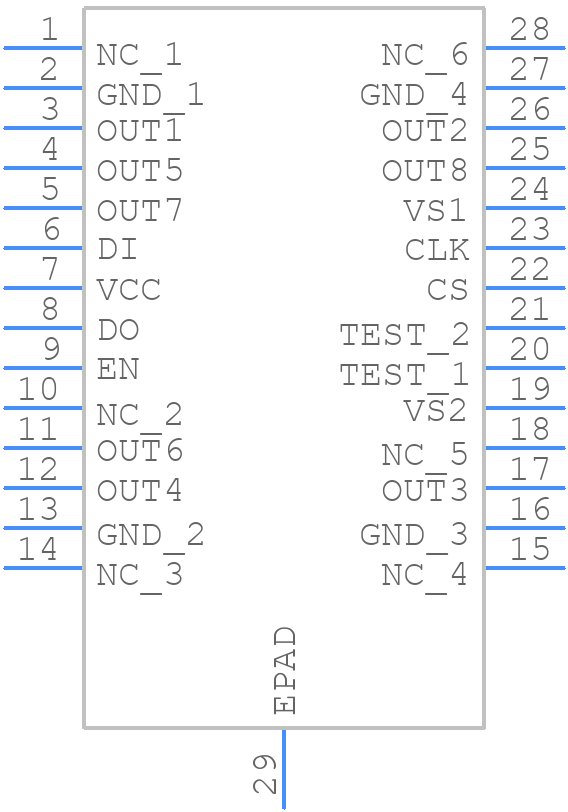

Use the download button to access the MPQ6628GF-AEC1-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ66,
or try a keyword search, such as Motion Control Electronics
