Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a thermocouple or other temperature sensor to validate the MPY100BG's readings.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's accuracy and linearity may degrade at extreme temperatures. It's recommended to operate the device within a narrower temperature range (e.g., 0°C to 100°C) for optimal performance.
To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the output. Additionally, consider using a ferrite bead or common-mode choke on the power supply lines to reduce noise.
To prevent damage or incorrect operation, it's recommended to power on the device in the following sequence: VCC, then VREF, and finally the input signal. This ensures that the internal biasing and reference circuits are properly established before applying the input signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPY100BG Overview

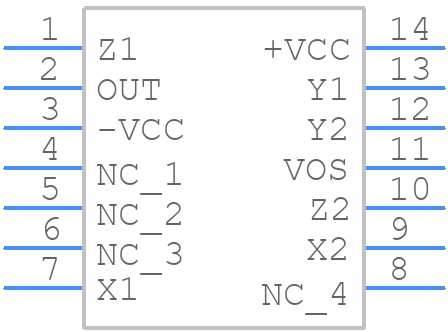

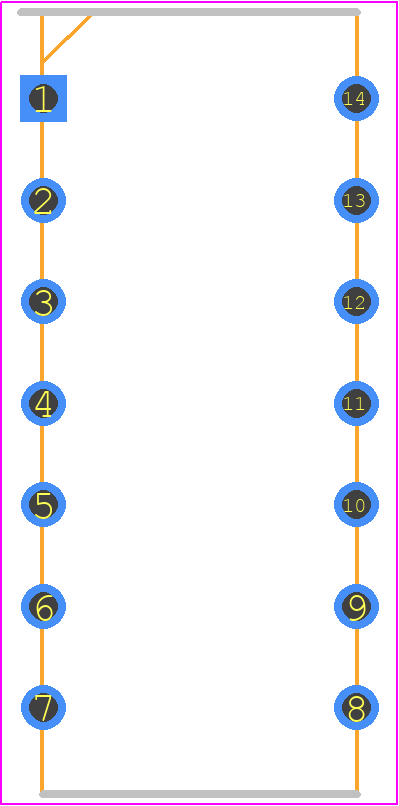

Use the download button to access the MPY100BG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPY10,
or try a keyword search, such as Analog Computational Functions
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
