PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPY100SG
- Part Number MPY100SG
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages

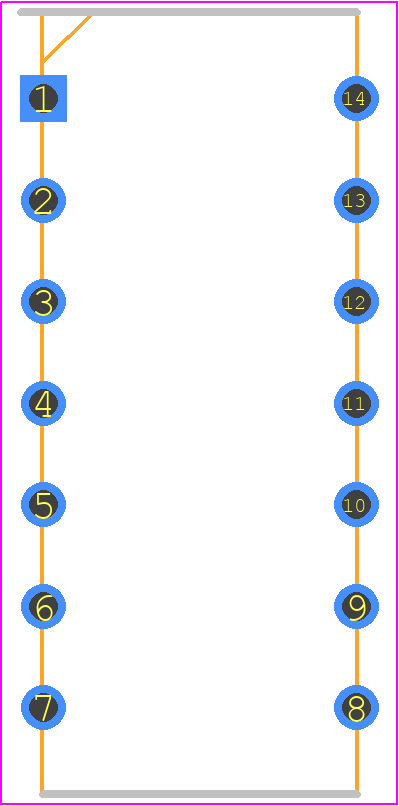

- Footprint Name Ceramic Dual-In-Line Packages - JD (R-CDIP-T14)-1
- Released Date Nov 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPY100SG Details
-
Manufacturer Part Number:
MPY100SG
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
CERAMIC, DIP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
MPY100SG Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
-
The MPY100SG has a high current consumption, especially when operating at high frequencies. To handle this, ensure that your power supply can provide the required current, and consider using a low-ESR capacitor to filter the power supply. You may also need to add thermal management, such as a heat sink, to prevent overheating.
-
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
Proper biasing is critical for the MPY100SG. Ensure that the device is biased according to the recommended operating conditions in the datasheet, and that the input signals are within the specified range. You may also need to add external biasing components, such as resistors and capacitors, to achieve the desired bias point.
-
The MPY100SG is a sensitive device and requires proper ESD protection. Ensure that your PCB design includes ESD protection diodes, and that you follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
Community Provided
System Verified
Community Approved
MPY100SG Overview

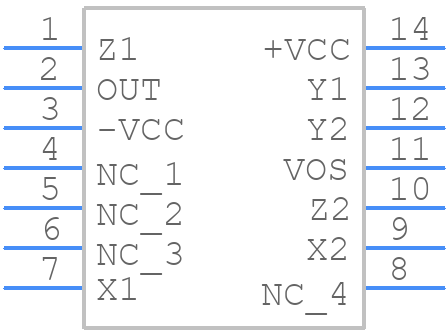

Use the download button to access the MPY100SG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MPY10,
or try a keyword search, such as Analog Computational Functions
