MR25H10CDF - Everspin Technologies

Description: MRAM 1Mbit Serial-SPI Interface 3.3V 8-Pin DFN EP Tray

Download MR25H10CDF Model

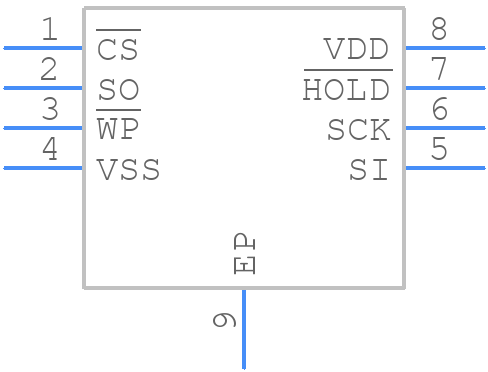

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MR25H10CDF - Everspin Technologies PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN Small Flag Package
click to zoom
3D Models
MR25H10CDF - Everspin Technologies  - 3D model - Small Outline No-lead - DFN Small Flag Package
click to zoom

MR25H10CDF Details

  • Manufacturer Part Number:

    MR25H10CDF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Everspin Technologies

  • YTEOL:

    5

  • Clock Frequency-Max (fCLK):

    40 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    MRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000115 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.027 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MR25H10CDF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MR25H10CDF is 40 MHz.
  • The MR25H10CDF uses a dual-port architecture that allows simultaneous read and write operations, ensuring that read and write cycles do not interfere with each other.
  • The MR25H10CDF has an endurance of 1 billion cycles, making it suitable for applications that require high reliability and long lifespan.
  • The MR25H10CDF has a built-in power-on reset circuit that ensures the device is in a known state after power-up, eliminating the need for external reset circuitry.
  • The MR25H10CDF has a latency of 35 ns, making it suitable for applications that require fast access to data.
