MRS25000C8250FCT00 - Vishay

Description: VISHAY - MRS25000C8250FCT00 - Through Hole Resistor, 825 ohm, MRS25, 600 mW, ± 1%, Axial Leaded, 350 V

Download MRS25000C8250FCT00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MRS25000C8250FCT00 - Vishay - PCB symbol
click to zoom
PCB Footprints

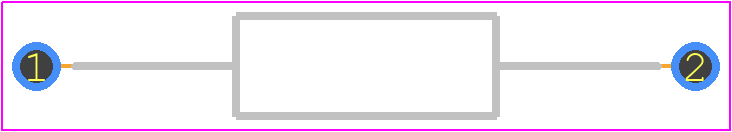

MRS25000C8250FCT00 - Vishay PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MRS25
click to zoom
3D Models
MRS25000C8250FCT00 - Vishay - 3D model - Resistors, Axial Diameter Horizontal Mounting - MRS25
click to zoom

MRS25000C8250FCT00 Details

  • Manufacturer Part Number:

    MRS25000C8250FCT00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, India

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    9

  • Additional Feature:

    RATED AC VOLTAGE: 350V

  • Construction:

    Tubular

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.6 mm

  • Lead Length:

    28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.5 mm

  • Package Length:

    6.5 mm

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Rated Power Dissipation (P):

    0.6 W

  • Rated Temperature:

    70 °C

  • Resistance:

    825 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

  • Tolerance:

    1%

  • Working Voltage:

    350 V

MRS25000C8250FCT00 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MRS25000C8250FCT00 can be found in the Vishay Intertechnologies' Resistors Land Pattern document (document number: 28771). It provides detailed information on the recommended pad layout and dimensions for this specific resistor package.
  • The power rating of the MRS25000C8250FCT00 is derated at high temperatures. According to the datasheet, the resistor's power rating is reduced by 1.25% per degree Celsius above 70°C. Engineers should consider this derating when designing their circuit to ensure the resistor operates within its specified power rating.
  • Vishay Intertechnologies recommends a soldering process with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The recommended soldering profile can be found in the Vishay Intertechnologies' Soldering Recommendations document (document number: 23030).
  • The tolerance of the MRS25000C8250FCT00 (±1%) can affect the overall circuit performance, particularly in precision circuits. Engineers should consider the resistor's tolerance when designing their circuit and ensure that the circuit's performance is not significantly impacted by the resistor's tolerance.
  • The MRS25000C8250FCT00 is a general-purpose resistor and not specifically designed for high-frequency applications. While it can be used in high-frequency circuits, its performance may not be optimal. Engineers should consider using a high-frequency resistor or a resistor specifically designed for their application.
