MSP430AFE222IPW - Texas Instruments

Description: Texas Instruments MSP430AFE222IPW, 16bit MSP430 Microcontroller, 12MHz, 4 kB Flash, 24-Pin TSSOP

Download MSP430AFE222IPW Model

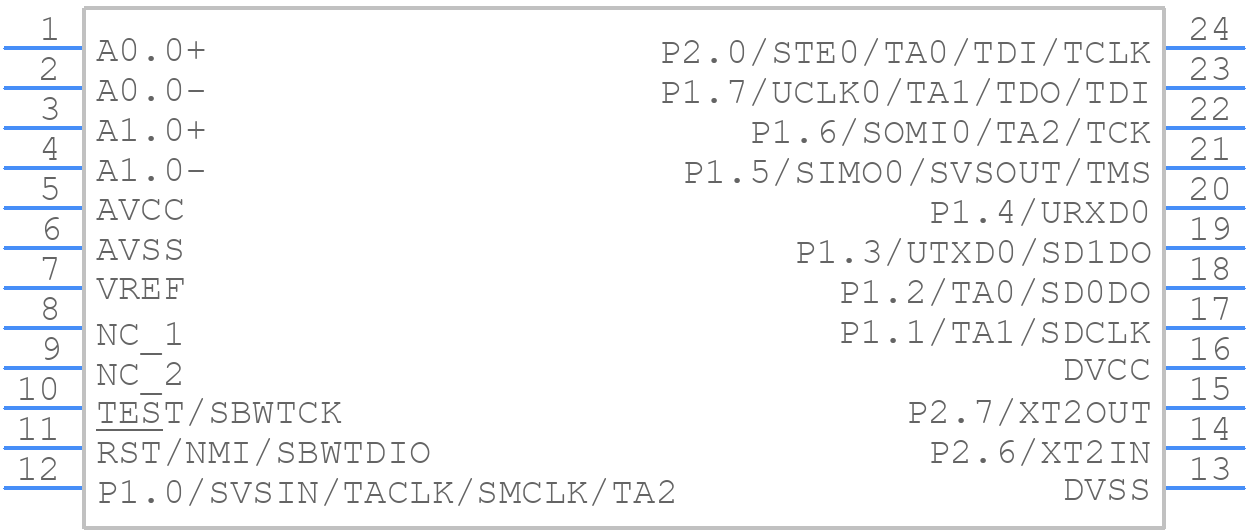

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSP430AFE222IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
MSP430AFE222IPW - Texas Instruments  - 3D model - Small Outline Packages - PW0024A
click to zoom

MSP430AFE222IPW Details

  • Manufacturer Part Number:

    MSP430AFE222IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.53

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    12 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    11

  • Number of Terminals:

    24

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    12 MHz

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430AFE222IPW Overview

Use the download button to access the MSP430AFE222IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Microcontrollers
