Part Image

MSP430BQ1010IRTVT - Texas Instruments

Description: MSP430BQ1010IRTVT, 16 bit Microcontroller 32-Pin QFN

Download MSP430BQ1010IRTVT Model
Schematic
symbols

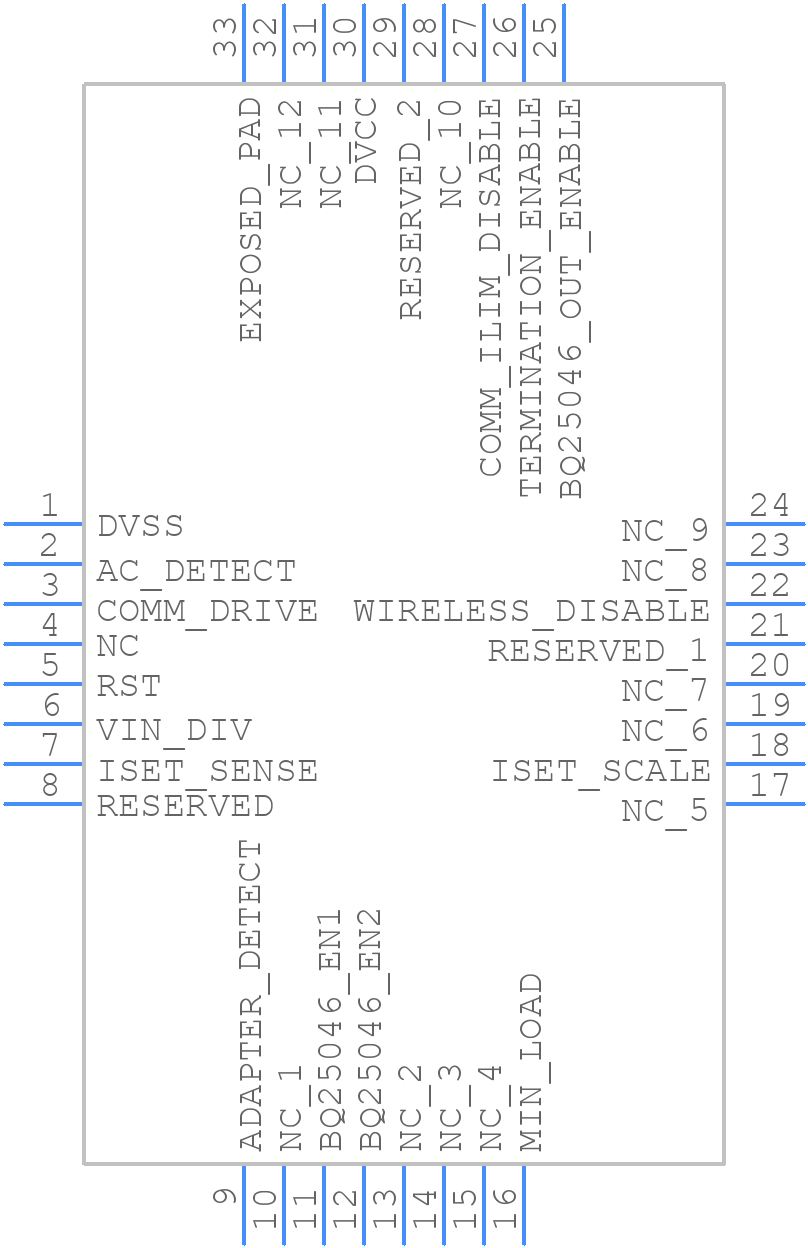

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSP430BQ1010IRTVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV (S-PWQFN-N32)
click to zoom
3D Models
MSP430BQ1010IRTVT - Texas Instruments  - 3D model - Quad Flat No-Lead - RTV (S-PWQFN-N32)
click to zoom

MSP430BQ1010IRTVT Details

  • Manufacturer Part Number:

    MSP430BQ1010IRTVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC32,.2SQ,20

  • Pin Count:

    32

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    8.27

  • YTEOL:

    0

  • Additional Feature:

    DETECTOR THRESHOLD VOLTAGE IS 1.44V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430BQ1010IRTVT Overview

Use the download button to access the MSP430BQ1010IRTVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Power Management Circuits

Parts related to MSP430BQ1010IRTVT

Showing 0 results

MSP430BQ1010IRTVT Alternates

Showing results

Image Part Number Model
Part Image 73S8009C-32IM/F Maxim Integrated Products

Power Supply Support Circuit, Fixed, 1 Channel, QFN-32

Part Image 73S8009C-32IMR/F Maxim Integrated Products

Power Supply Support Circuit, Fixed, 1 Channel, QFN-32

Part Image LP3921SQX National Semiconductor Corporation

IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, QCC32, 5 X 5 MM, LLP-32, Power Management Circuit

Part Image LP3921SQE National Semiconductor Corporation

IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, QCC32, 5 X 5 MM, LLP-32, Power Management Circuit

Part Image MSP430BQ1010IRHBT Texas Instruments

MSP430BQ1010 - Pre-programmed, fixed-function device for wireless power control and communications 32-VQFN -40 to 85

For a full list of alternate parts for MSP430BQ1010IRTVT, check out Findchips.com
