MSP430F2121IPWR - Texas Instruments

Description: MCU 16-Bit MSP430 RISC 4KB Flash TSSOP20 Texas Instruments MSP430F2121IPWR, 16bit MSP430 Microcontroller, 16MHz, 256 B, 4 kB Flash, 20-Pin TSSOP

Download ECAD Model

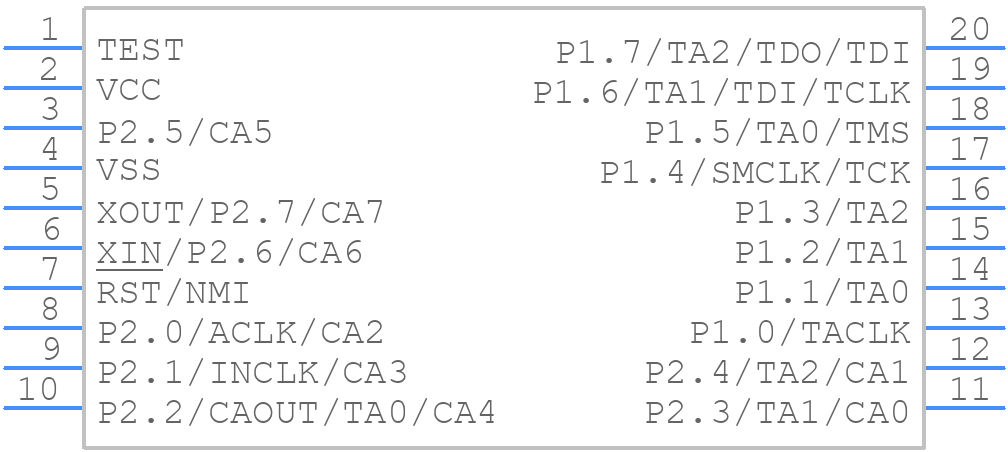

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

MSP430F2121IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

3D Models

MSP430F2121IPWR - Texas Instruments  - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

MSP430F2121IPWR Details

  • Manufacturer Part Number:

    MSP430F2121IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP, TSSOP20,.25

  • Pin Count:

    20

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.1

  • Samacsys Modified On:

    2022-04-30 06:25:21

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 6 MHZ

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • Number of Timers:

    16

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/3.3 V

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • RAM (words):

    0.25

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    16 MHz

  • Subcategory:

    Microcontrollers

  • Supply Current-Max:

    0.41 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
