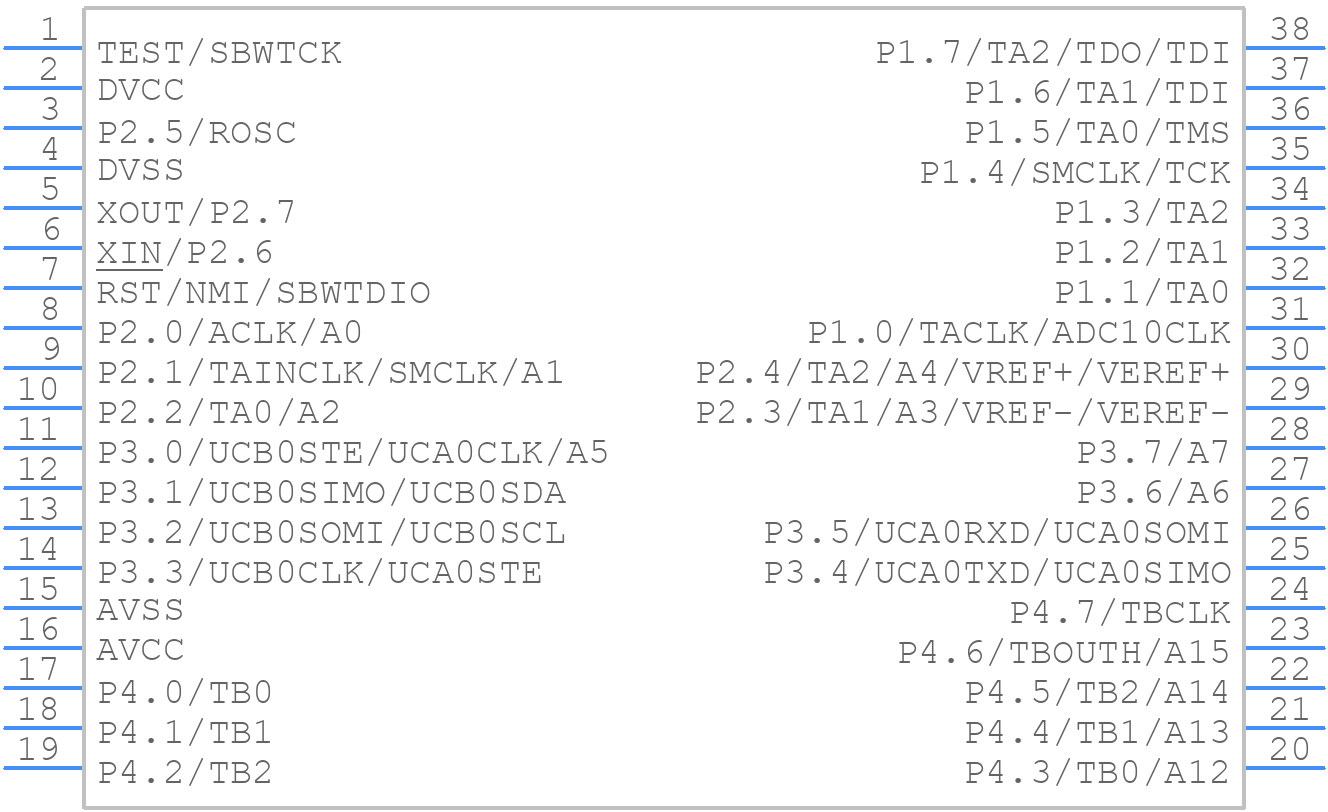

MSP430F2272IDAR - Texas Instruments

MSP430F2272IDAR Details

• Manufacturer Part Number:

  MSP430F2272IDAR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Pin Count:

  38

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Has ADC:

  YES

• Bit Size:

  16

• Boundary Scan:

  YES

• CPU Family:

  MSP430

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G38

• JESD-609 Code:

  e4

• Length:

  12.5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  2

• Number of I/O Lines:

  32

• Number of Serial I/Os:

  1

• Number of Terminals:

  38

• Number of Timers:

  2

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP38,.32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1024

• RAM (words):

  1

• ROM (words):

  33024

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  16 MHz

• Supply Current-Max:

  0.55 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
