The maximum operating temperature range for the MSP430F2370IYFFT is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a reduced frequency and voltage at higher temperatures.
To configure the MSP430F2370IYFFT for low-power operation, you can use the Power Management Module (PMM) to control the power modes. The PMM allows you to select from various power modes, such as Active, LPM0, LPM1, LPM2, LPM3, and LPM4, each with decreasing power consumption. You can also use the Dynamic Voltage Scaling (DVS) feature to adjust the voltage and frequency of the device based on the application's requirements.
The maximum clock frequency for the MSP430F2370IYFFT is 16 MHz, which can be achieved using an external crystal oscillator or a high-frequency internal oscillator. However, the device can also operate at lower frequencies, such as 1 MHz or 32768 Hz, to reduce power consumption.
The USCI on the MSP430F2370IYFFT is a flexible serial communication interface that can be configured as a UART, SPI, or I2C interface. To use the USCI, you need to configure the interface using the USCI control registers, select the desired communication mode, and set the baud rate and other communication parameters. You can also use the USCI interrupts to handle data transmission and reception.
The JTAG (Joint Test Action Group) interface on the MSP430F2370IYFFT is a debugging interface that allows you to debug and program the device using a JTAG debugger or emulator. The JTAG interface provides access to the device's internal registers, memory, and peripherals, enabling you to debug and test your application code.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430F2370IYFFT Overview

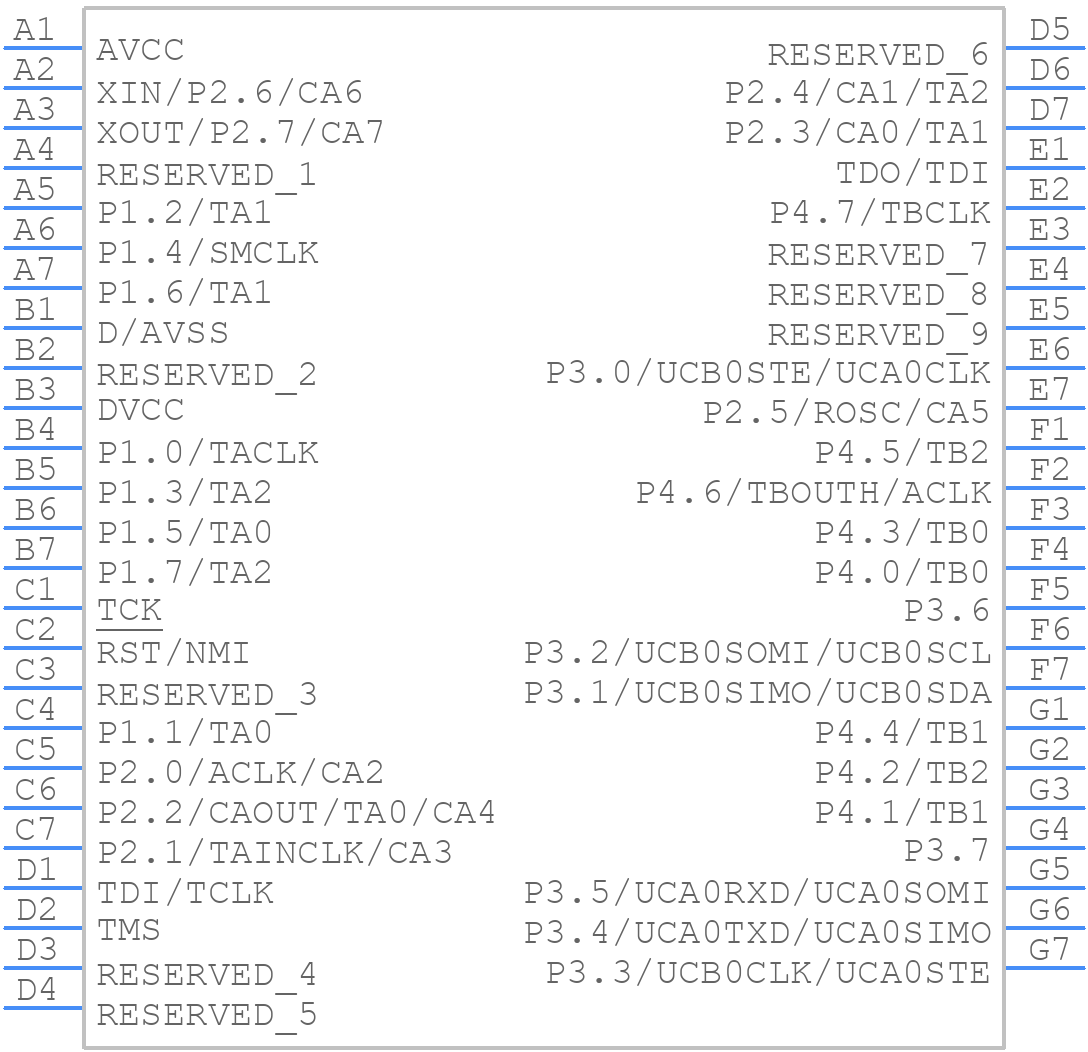

Use the download button to access the MSP430F2370IYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
