The maximum operating temperature range for the MSP430FR2475TRHBT is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a reduced frequency and voltage at higher temperatures.
To configure the MSP430FR2475TRHBT for low-power operation, you can use the Power Management Module (PMM) to control the voltage regulator, switch between low-power modes, and adjust the clock frequency. Additionally, you can use the FRAM memory's low-power features, such as the Low-Power Mode (LPM) and the Power-Saving Mode (PSM).
The maximum frequency for the MSP430FR2475TRHBT's CPU is 16 MHz, but it can be adjusted using the Digital Frequency Locked Loop (DFLL) or the Internal Very-Low-Power Low-Frequency Oscillator (VLO) to reduce power consumption.
The MSP430FR2475TRHBT's FRAM memory is a non-volatile memory that can be used to store data and program code. You can access the FRAM memory using the CPU's memory-mapped interface, and it's essential to follow the guidelines for writing and erasing the FRAM to ensure data integrity and prevent wear-out.
The MSP430FR2475TRHBT's power consumption characteristics vary depending on the operating mode, frequency, and voltage. In active mode, the typical current consumption is around 1.4 mA/MHz at 3V and 16 MHz. In low-power mode, the current consumption can be as low as 0.3 μA. Refer to the datasheet for more detailed power consumption characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR2475TRHBT Overview

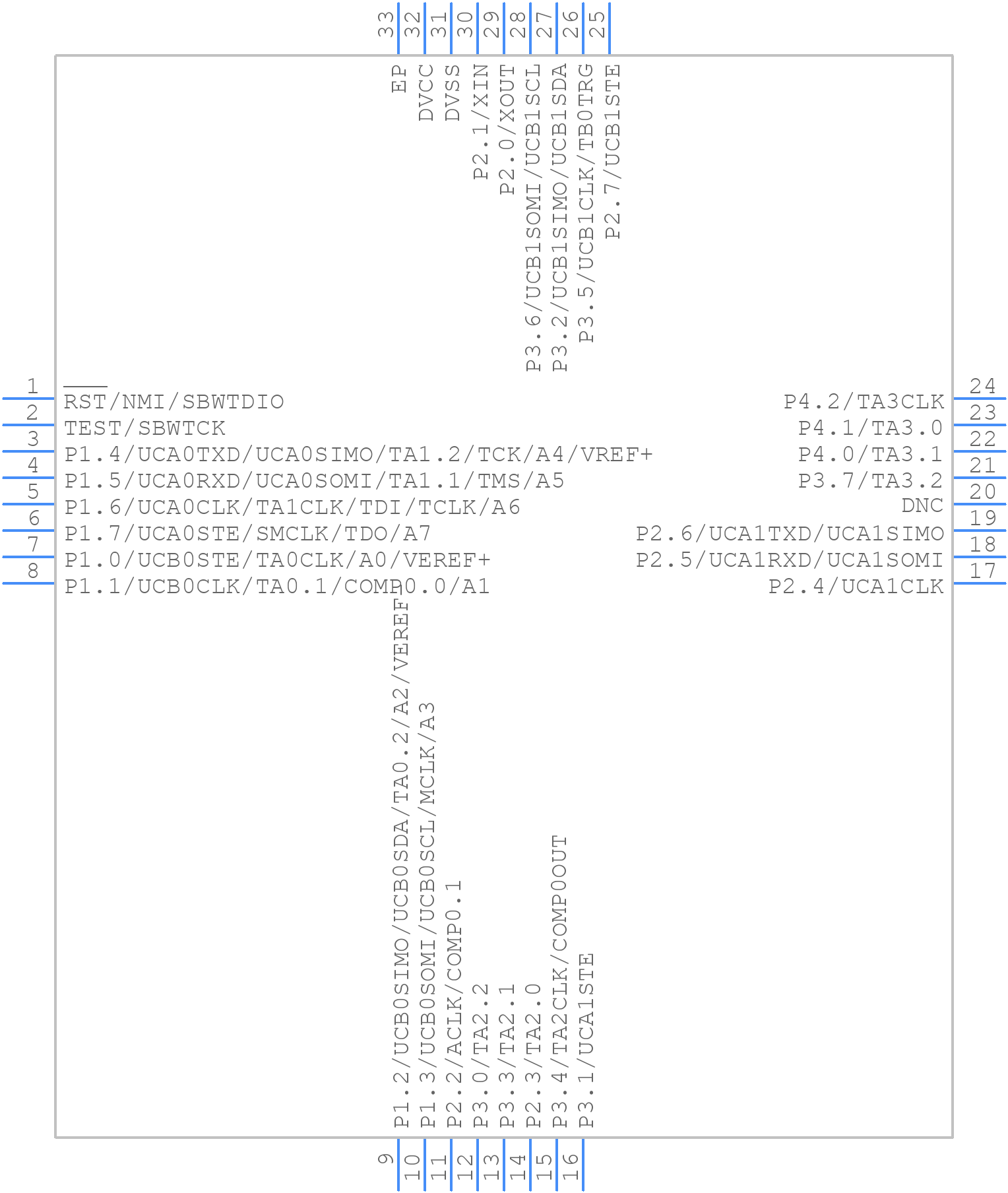

Use the download button to access the MSP430FR2475TRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
