The maximum operating temperature range for the MSP430FR5728IPW is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a reduced frequency and voltage at higher temperatures.
To configure the MSP430FR5728IPW for low-power operation, you can use the Power Management Module (PMM) to control the power modes. The PMM allows you to select from various power modes, such as LPM0 (active mode), LPM1 (low-power mode), LPM2 (low-power mode with CPU disabled), LPM3 (low-power mode with CPU and MCLK disabled), and LPM4 (low-power mode with CPU, MCLK, and SMCLK disabled). You can also use the FRAM controller to reduce power consumption by configuring the FRAM to operate in low-power mode.
The maximum frequency of the MSP430FR5728IPW is 24 MHz, which is the maximum frequency of the internal digitally controlled oscillator (DCO). However, the device can also be clocked using an external clock source, such as a crystal oscillator or an external clock signal.
The FRAM (Ferroelectric Random Access Memory) in the MSP430FR5728IPW is a non-volatile memory that can be used to store data and program code. To use the FRAM, you need to configure the FRAM controller and use the FRAM access instructions in your code. The FRAM can be accessed using the FRAM interface, which provides a byte-level interface to the FRAM.
The JTAG (Joint Test Action Group) interface on the MSP430FR5728IPW is used for debugging and programming the device. The JTAG interface provides a way to access the device's internal registers and memory, allowing you to debug and test your code. The JTAG interface can also be used to program the device's flash memory and FRAM.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR5728IPW Overview

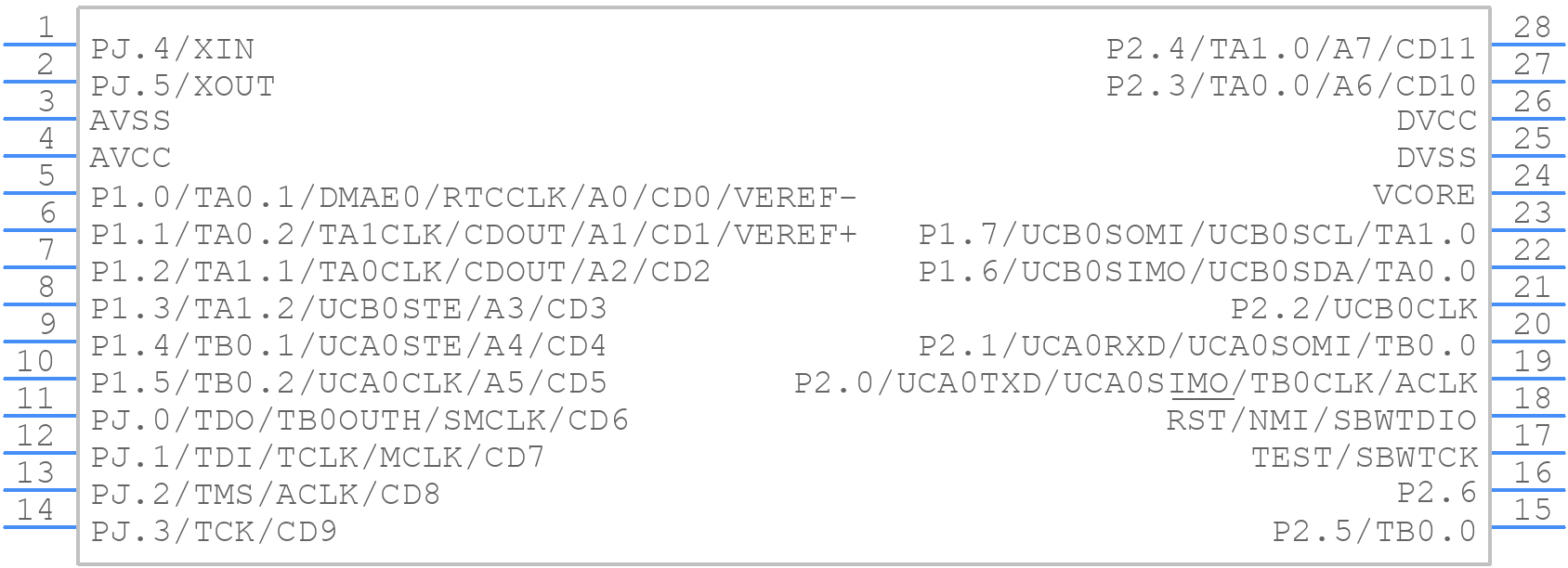

Use the download button to access the MSP430FR5728IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
