The maximum operating temperature range for the MSP430FR59471IRHAT is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a reduced frequency and voltage at higher temperatures.
To configure the MSP430FR59471IRHAT for low-power operation, you can use the device's power modes, such as LPM3 or LPM4, which can be set using the PMMCTL0 register. Additionally, you can disable unused peripherals, reduce the clock frequency, and use the device's built-in low-power modes to minimize power consumption.
The maximum clock frequency for the MSP430FR59471IRHAT is 16 MHz, which can be achieved using an external crystal oscillator or the internal digitally controlled oscillator (DCO). However, the device can also operate at lower frequencies to reduce power consumption.
The MSP430FR59471IRHAT's FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that can be used to store data. To use the FRAM memory, you need to configure the memory controller and use the FRAM-specific instructions, such as the FRAM read and write instructions. It's essential to follow the guidelines in the datasheet to ensure proper operation and data retention.
No, the MSP430FR59471IRHAT is not designed to operate with a 5V power supply. The recommended operating voltage range is 1.8V to 3.6V, and exceeding this range may damage the device. If you need to interface with 5V devices, you'll need to use level shifters or voltage regulators to ensure compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR59471IRHAT Overview

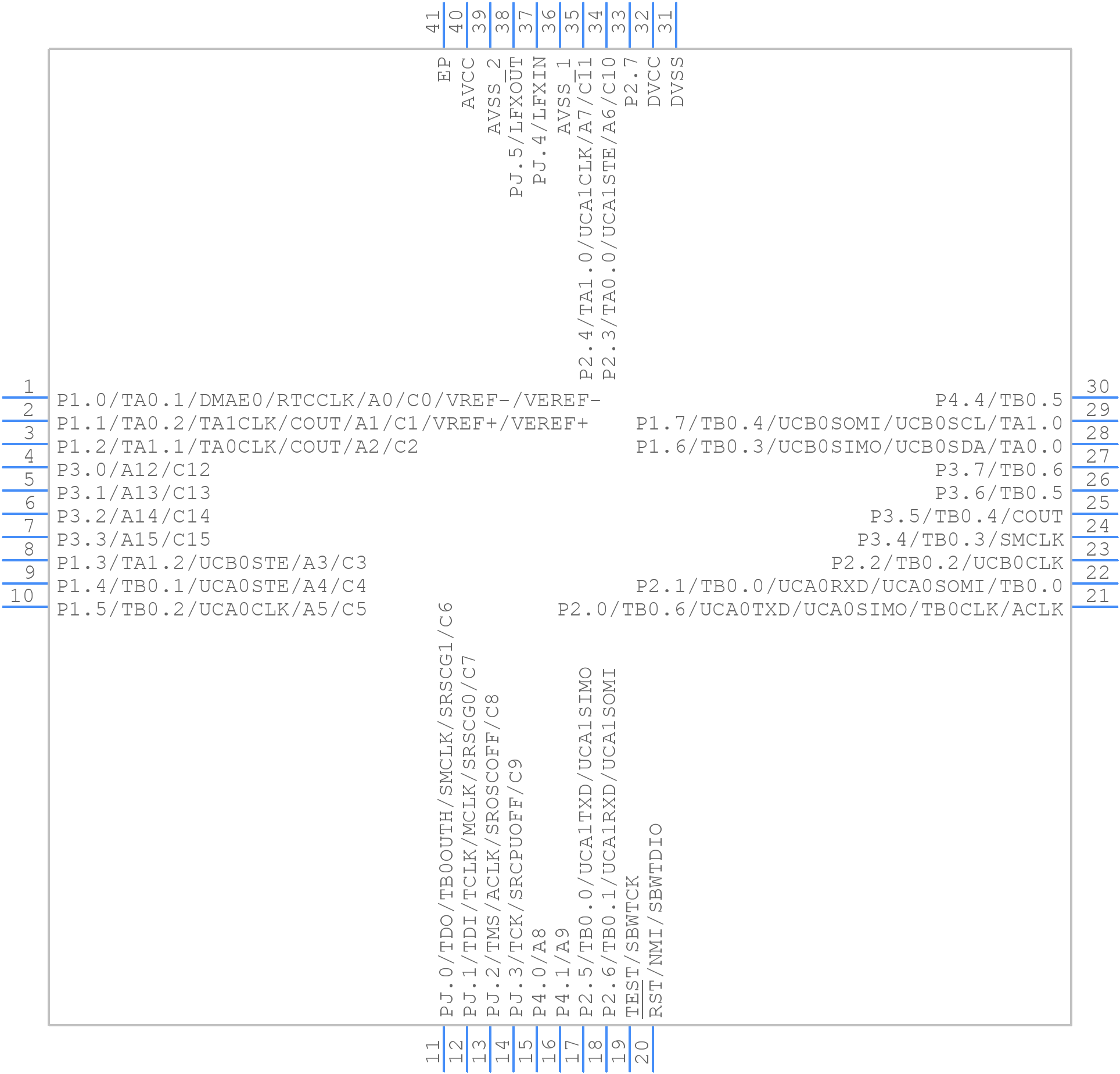

Use the download button to access the MSP430FR59471IRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
