MSP430G2102IPW20R - Texas Instruments

Description: MSP430G2x32, MSP430G2x02 Mixed Signal Microcontroller

Download MSP430G2102IPW20R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

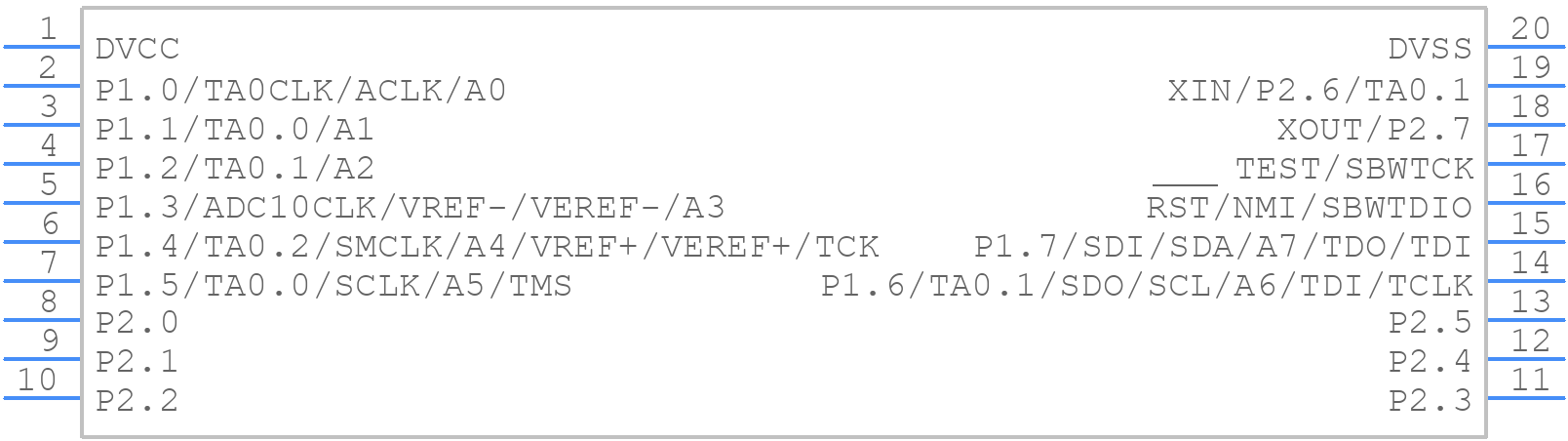

MSP430G2102IPW20R - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MSP430G2102IPW20R - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
MSP430G2102IPW20R - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

MSP430G2102IPW20R Details

  • Manufacturer Part Number:

    MSP430G2102IPW20R

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    NO

  • Additional Feature:

    ALSO OPERATES 1.8 V MINIMUM SUPPLY AT 6 MHZ AND 2.7 V MINIMUM SUPPLY AT 12 MHZ

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of DMA Channels:

    1

  • Number of I/O Lines:

    16

  • Number of Terminals:

    20

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    128

  • RAM (words):

    0.125

  • ROM (words):

    1024

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MSP430G2102IPW20R Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a clock frequency of 12 MHz or less to ensure reliable operation.
  • The GPIO pins can be configured as inputs or outputs using the PxDIR (Port x Direction) register. Setting a bit in PxDIR to 1 configures the corresponding pin as an output, while setting it to 0 configures it as an input.
  • The RST/NMI pin is a dual-function pin that can be used as either a reset input or a non-maskable interrupt (NMI) input. To use it as a reset input, connect it to a reset source and ensure that the RST/NMI pin is not configured as an NMI input. To use it as an NMI input, configure the pin as an NMI input using the SFRIE1 register and connect it to an NMI source.
  • The WDT can be enabled and configured using the WDTCTL register. The WDT can be used to generate a reset or an interrupt when the timer expires. The WDT clock source can be selected from the SMCLK or ACLK, and the timeout period can be set using the WDTPW and WDTS bits in the WDTCTL register.
  • The power consumption of the MSP430G2102 varies depending on the operating mode. In active mode, the current consumption is typically around 1.5 mA at 1 MHz and 3V. In low-power mode 3 (LPM3), the current consumption is typically around 0.5 μA at 3V. In shutdown mode, the current consumption is typically around 0.1 μA at 3V.
