MSP430G2231IRSA16 - Texas Instruments

Description: MIXED SIGNAL MICROCONTROLLER

Download MSP430G2231IRSA16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

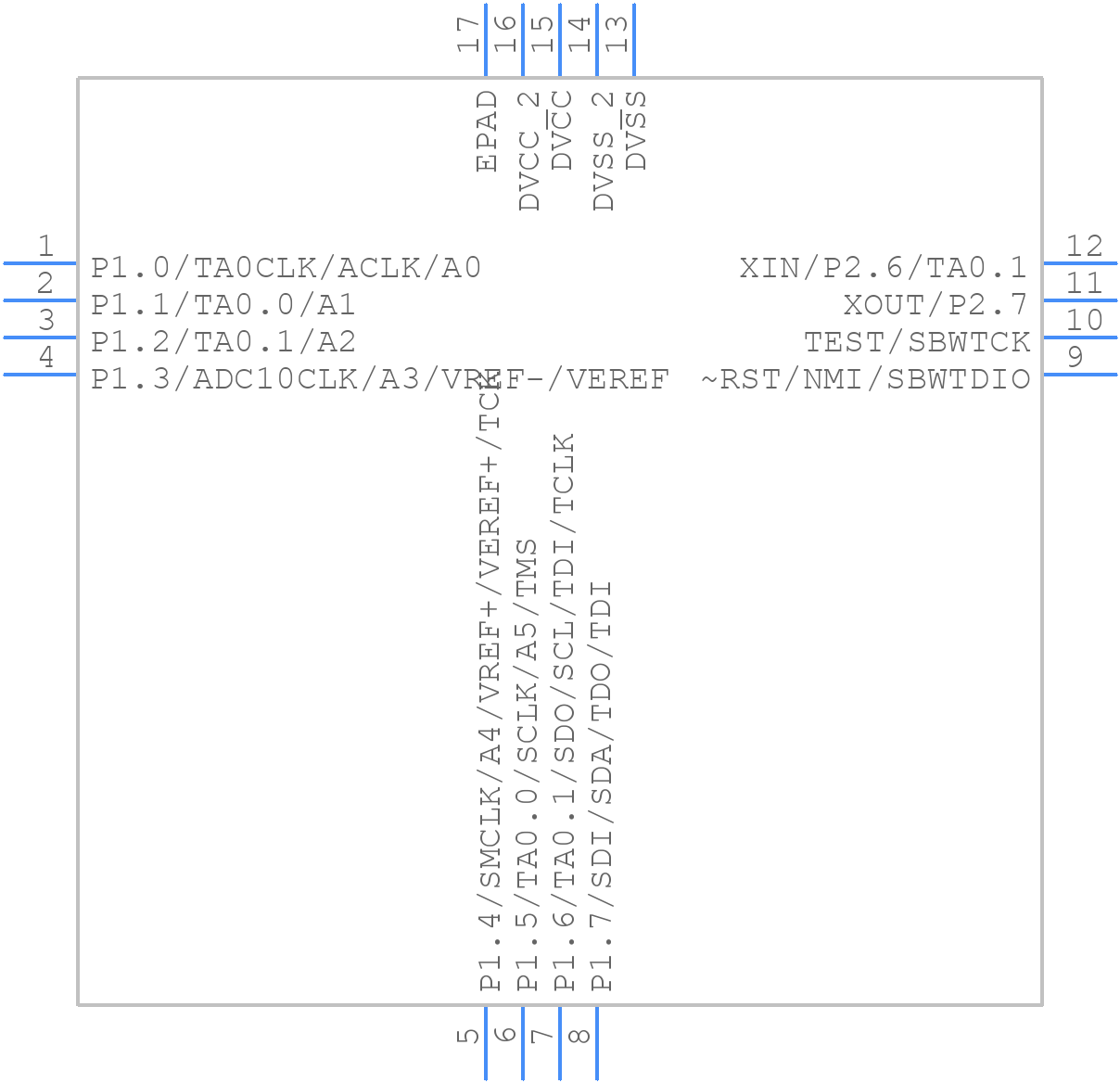

MSP430G2231IRSA16 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MSP430G2231IRSA16 - Texas Instruments PCB footprint - Other - Other - QFN65P400X400X100-17N
click to zoom
3D Models
MSP430G2231IRSA16 - Texas Instruments - 3D model - Other - QFN65P400X400X100-17N
click to zoom

MSP430G2231IRSA16 Details

  • Manufacturer Part Number:

    MSP430G2231IRSA16

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    GREEN, PLASTIC, QFN-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Number of I/O Lines:

    10

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MSP430G2231IRSA16 Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a clock frequency of 12 MHz or less to ensure reliable operation.
  • To configure the MSP430G2231IRSA16 to use an external crystal oscillator, you need to connect the crystal to the XIN and XOUT pins, and then configure the UCSCTL6 register to select the external crystal oscillator as the clock source.
  • The minimum voltage required for the MSP430G2231IRSA16 to operate is 1.8V. However, it's recommended to operate the device at a voltage of 2.2V or higher to ensure reliable operation.
  • To use the built-in UART module on the MSP430G2231IRSA16, you need to configure the UCAxCTL0 and UCAxCTL1 registers to set the baud rate, data bits, and stop bits. You also need to enable the UART module by setting the UCAxCTL0.UCAEN bit.
  • The maximum current that can be sourced or sunk by the GPIO pins on the MSP430G2231IRSA16 is 4mA. However, it's recommended to limit the current to 2mA or less to ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MSP430G2231IRSA16 Overview

Use the download button to access the MSP430G2231IRSA16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Microcontrollers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
