Texas Instruments provides a recommended PCB layout in the MSP430 Microcontroller Family User's Guide (SLAU144) and the MSPM0C1104SDDFR datasheet. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals and power supply decoupling.
The MSPM0C1104SDDFR has an internal POR and BOR circuitry. To handle these, ensure a stable power supply, add decoupling capacitors, and use a reset supervisor IC if necessary. Also, consider implementing a power-up and power-down sequence in your firmware to handle the POR and BOR events.
The maximum clock frequency of the MSPM0C1104SDDFR is 16 MHz. However, the actual achievable frequency may be limited by the quality of the crystal oscillator, PCB layout, and other system factors. Ensure you follow the recommended crystal oscillator circuit and layout guidelines to achieve the maximum frequency.
To configure the GPIO pins for optimal performance, ensure you set the correct pin direction, enable the internal pull-up or pull-down resistors as needed, and use the correct pin mode (e.g., input, output, or input/output). Also, consider using the GPIO interrupts and edge detection features to optimize your firmware.
The MSPM0C1104SDDFR has a maximum operating temperature range of -40°C to 85°C. Ensure your system design takes into account thermal considerations such as heat dissipation, PCB thermal conductivity, and component placement to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0C1104SDDFR Overview

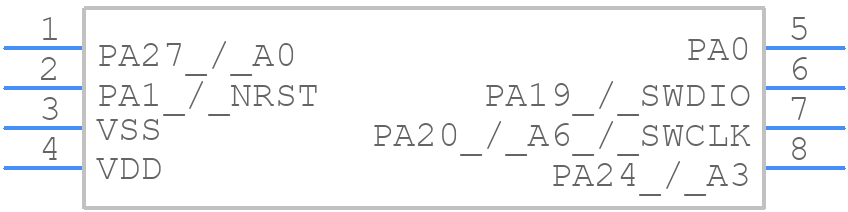

Use the download button to access the MSPM0C1104SDDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSPM0,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
