Description:Core
– Arm® 32-bit Cortex®-M0+ CPU, frequency up to
32 MHz
• Operating characteristics
– Extended temperature: –40°C to 105°C
– Wide supply voltage range: 1.62 V to 3.6 V
• Memories
– Up to 64KB of flash
– 4KB of SRAM
• High-performance analog peripherals
– One 12-bit 1.68-Msps analog-to-digital
converter (ADC) with up to 10 total external
channels
– Configurable 1.4-V or 2.5-V internal ADC
voltage reference (VREF)
– One general-purpose amplifier (GPAMP)
– Integrated temperature sensor
• Op
Texas Instruments provides a recommended PCB layout in the MSPM0L1105TRHBR datasheet, but it's also recommended to follow the general guidelines for PCB layout for power modules, such as keeping the high-current paths short and wide, and using a solid ground plane to reduce EMI.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
Possible causes of overheating in the MSPM0L1105TRHBR include high ambient temperature, high output current, poor PCB layout, and inadequate thermal management. To prevent overheating, ensure proper thermal management, follow the recommended operating conditions, and monitor the device temperature using the built-in thermal protection feature.
To troubleshoot issues with the MSPM0L1105TRHBR, start by reviewing the datasheet and application notes to ensure that the device is used within the recommended operating conditions. Then, use oscilloscopes and other diagnostic tools to identify the root cause of the issue, and consult with Texas Instruments' technical support if necessary.
Yes, the MSPM0L1105TRHBR can be used in a parallel configuration to increase the output current, but it's essential to follow the recommended guidelines for paralleling power modules, including ensuring that the devices are identical, using a common input voltage, and providing adequate thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSPM0L1105TRHBR Overview

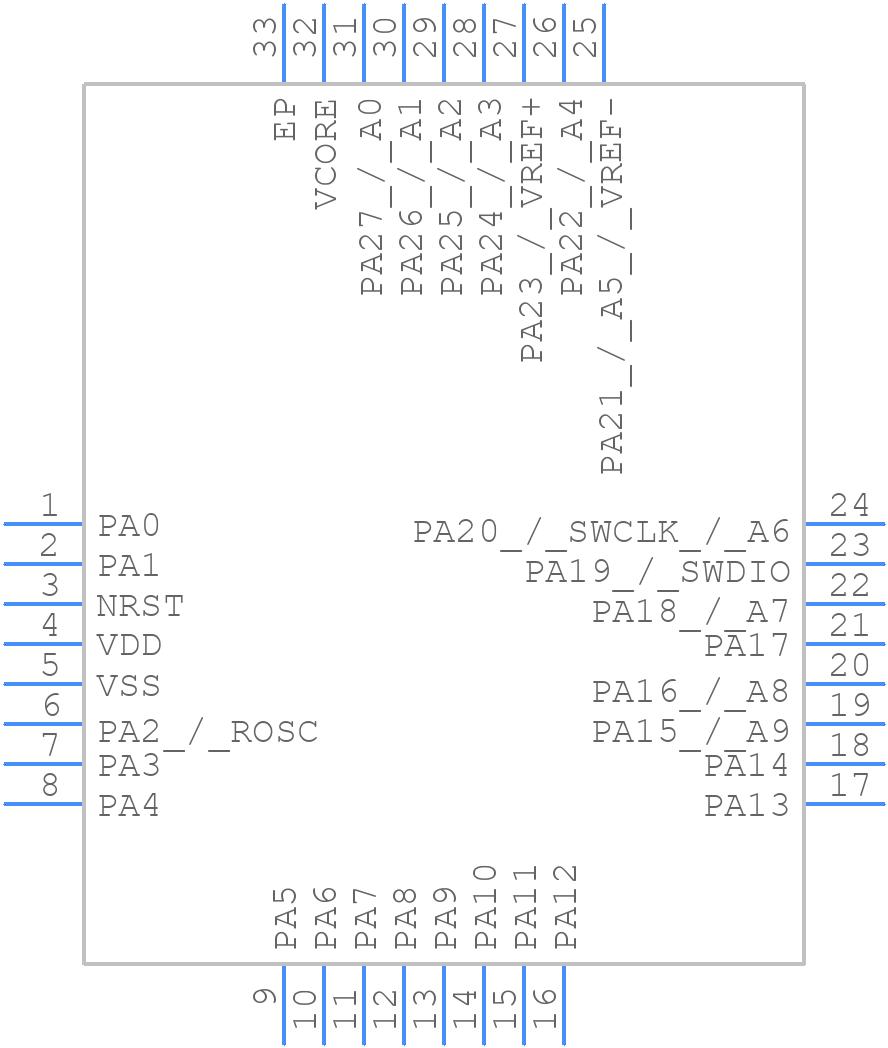

Use the download button to access the MSPM0L1105TRHBR schematic symbol, PCB footprint, and 3D model.
